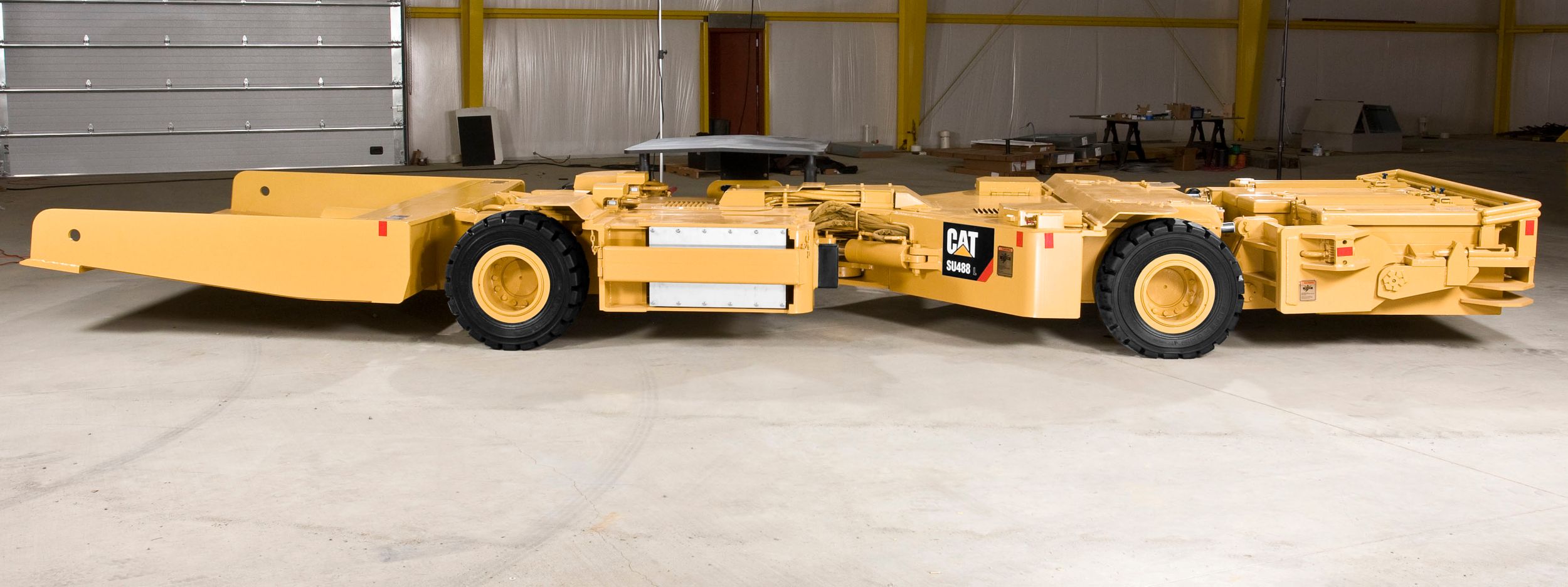

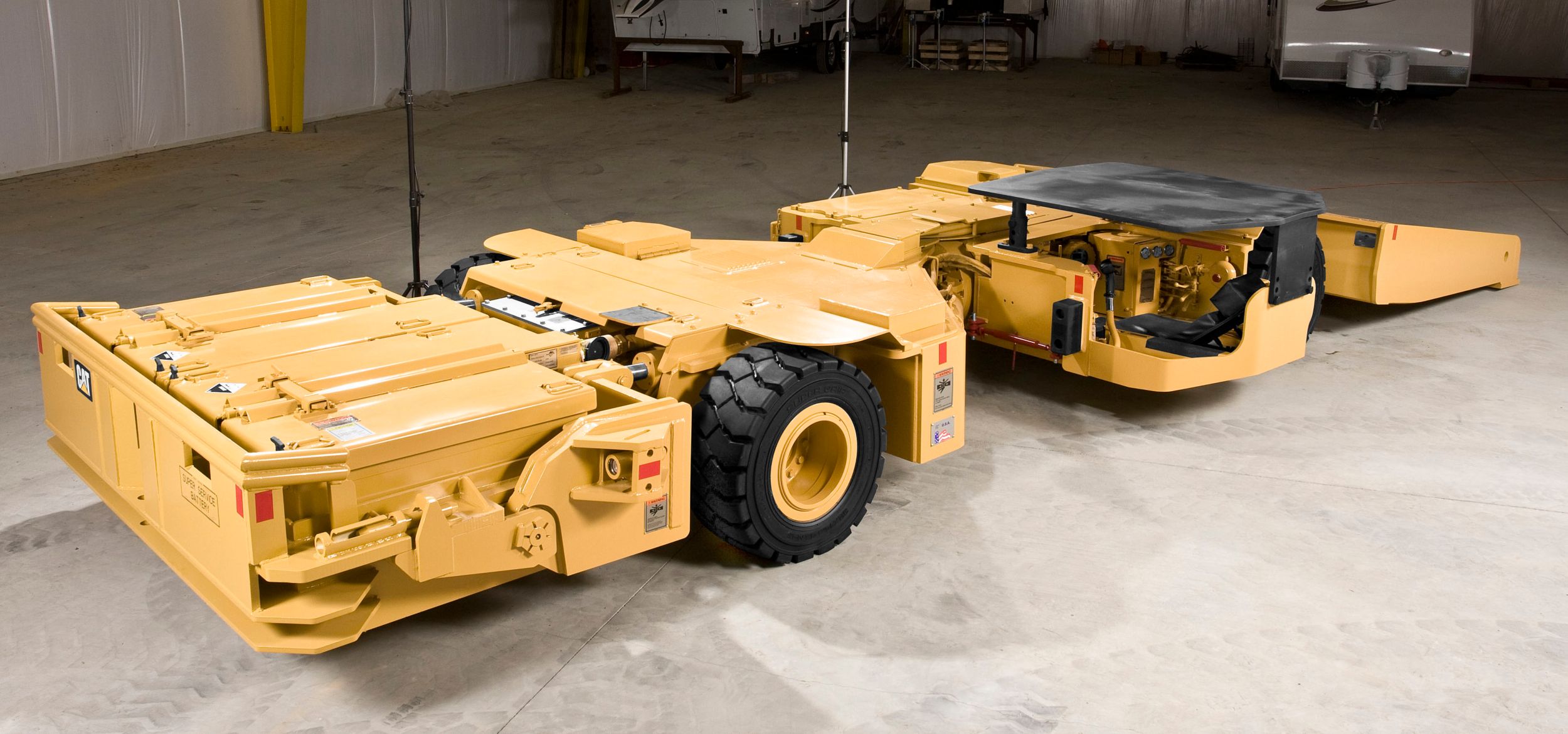

SU488 L SCOOP
With over 40 years’ experience and over 6,500 battery-powered units produced, the Cat Scoop is the obvious choice for a low-maintenance, high-productivity utility vehicle. These battery-powered mining machines are setting the pace in efficient and reliable underground utility vehicles. The SU488 L is one of the strongest and most rugged low-profile scoops ever built.
SPECIFICATIONS
Height to Top of Cab1120.0 mm
Payload Capacity9.1 tonnes
Length8760.0 mm
BENEFITS AND FEATURES
specifications
Height to Top of Cab1120.0 mm
Payload Capacity9.1 tonnes
Length8760.0 mm
Operating Height864 mm (and above) [34 in (and above)]
Power TypeBattery
tirewheel option
Options28×15-15 Tires - Customer specified tire brand and fill type.
Options35×15-15 Tires - Customer specified tire brand and fill type.
Options32×15-15 Tires - Customer specified tire brand and fill type.
machine battery
ComponentsBattery Tray
ComponentsBattery Filling System
ComponentsBattery Receptacle Kit
ComponentsBattery with Plastisol Coated Tray (Single Connector)
lift and carry capacity
Capacity9.1 tonnes (10 tons) at 1220 mm (48 in) from bucket mounting pin
hydraulics
Hydraulic Hose and FittingsJIC fittings with high pressure hosing; MSHA 2G flame resistant approved.
Hydraulic PTOTwo (2) quick coupler connections, 8.27 MPa (1,200 psi) maximum recommended operating pressure.
Lift CylinderTwo (2) 152 mm (6 in) bore, double acting cylinders with forged rods and self-aligning bushings.
Reservoir Fill SystemFill cap assembly in top of reservoir tank.
Steering CylinderTwo (2) 127 mm (5 in) bore, double acting cylinders with forged rods and self-aligning bearings.
auxiliary components
ComponentsBattery Change Cables
dimensions
Overall Length (with bucket)8760.0 mm
Overall Width (at bucket)2920.0 mm
weights
Scoop Utility Empty Weights - Less Battery12700.0 kg
Scoop Utility Empty Weights - With 64-SS55-21 Battery16220.0 kg
Scoop Utility Empty Weights - With 64-SS85-21 Battery19277.0 kg
battery charger options
OptionsDual Output for Two Batteries
OptionsSingle Output for One Battery
operator control options
OptionsLeft hand control stick that incorporates the most common operator functions.
OptionsTapeswitch stop switches located on both sides of operator.
OptionsManual Disconnect Switch.
battery plug single connector option
OptionsBattery plug is rated at 600 amps.
OptionsJ
r 2000 5pole brass with captive wrench brass plug with a captive wrench to install or remove the battery plugs
Battery Plug - Single Connector OptionOptions
other connector options available upon request
SpeedTram Speed
80 kmh
Operator’s CompartmentComponents
extended operator’s deck
Operator’s CompartmentComponents
right foot accelerator pedal
Operator’s CompartmentComponents
left foot brake pedal
Operator’s CompartmentComponents
tape strip panic switch that deenergizes electrical system and applies automatic brake
Operator’s CompartmentComponents
warning gong
Operator’s CompartmentComponents
manual circuit breaker lever reset handle
Operator’s CompartmentComponents
park brake release pressure gauge
Operator’s CompartmentComponents
system pressure gauge
Operator’s CompartmentComponents
accumulator pressure gauge
Operator’s CompartmentValve Bank Hydraulic - Functions:
• steering • bucket • bucket eject • winchpower take off • battery changer
Electrical ControlsTypes
mine duty 600 amp frame circuit breaker with uvr under voltage release trip unit
ManualsTypes
two battery maintenance manuals
ManualsTypes
two parts manuals
ManualsTypes
one linkone cd which includes all above manuals in electronic format
ManualsTypes
two electrical troubleshooting guides
ManualsTypes
two battery maintenance charts
ManualsTypes
two operation and preventive maintenance manuals
Lighting System OptionOptions
ocenco halogen 12v dc 50 watt two front headlights with protective guard and two rear headlights with protective guard
Lighting System OptionOptions
mci 12v
Lighting System OptionOptions
mci 120v
Drive TrainAxles
heavy duty axles features outboard planetary sahr brakes brake cooling and optional difflock
Drive TrainDrive Lines
heavy duty offhighway 7c type driveshafts with slip joints
Drive TrainReducer
a foot mounted 3331 ratio gearbox
BrakesService and Emergency/Park
spring applied hydraulic release sahr
BrakesService and Emergency/Park
4wheel wet disc
BrakesService and Emergency/Park
controlled by reverse modulating valve
BrakesService and Emergency/Park
left pedal activated
BENEFITS AND FEATURES
SU488 L OPTIONS
- schroder test mate
- pa approval kit
- park brake pressure switch
- center section lock bar
- venturi jet fill
- traction motor over speed protection
- buc 2000 hand held calibrator control adjustments and troubleshooting
MOTEUR
Controlled Productivity
BENEFITS AND FEATURES
We have led the way in increasing the productivity of battery powered mining equipment. Our control system eliminates commutating coils and capacitor banks and is able to provide a microprocessor-based motor controller. Using the dash-mounted diagnostic display and the handheld calibrator/diagnostic unit, difficulties can be overcome in short order.
High-performance AC power for more efficiency
BENEFITS AND FEATURES
The Cat HiPAC 10 is a DC to AC variable-frequency inverter control that drives high-performance AC electronic motors, which have a superior speed-torque characteristics. It is up to 14% more efficient than traditional DC motors. This means higher loaded tram speeds, more responsive hydraulic functions and more work per battery charge.
Higher loaded tram speeds
BENEFITS AND FEATURES
The scoop is equipped with a 37.3 kW (50 hp), 110V DC, class H insulation series wound traction motor. An optional 74.6 kW (100 hp) AC tram motor is available with the HiPAC 10 VFD Control System.
Explosion proof with 11.9 kW/16 hp
BENEFITS AND FEATURES
All Cat utility scoops feature large hydraulic fluid reservoirs for maximum cooling capacity. Each reservoir is equipped for easy fluid-level monitoring. The machines are provided with 10-micron return line filtration and a magnetic particle sump strainer. For long life and dependability, the main implement pumps are helical gear, fixed displacement. Dash-mounted gauges provide the operator with continuous monitoring of the status of the hydraulic system. An optional 35 kW (47 hp) AC pump motor with HiPAC 10 VFD Control System is available.
Unparalleled speed and maximum reliability
BENEFITS AND FEATURES
With options and features like full inboard planetary axles and bulletproof outboard and hub-end planetary axles, the Cat scoop is the right combination for any application. For unparalleled speed and maximum reliability, the SU488 L offers dual 37.3 kW (50 hp) tram motors.
4-wheel drive on-demand
BENEFITS AND FEATURES

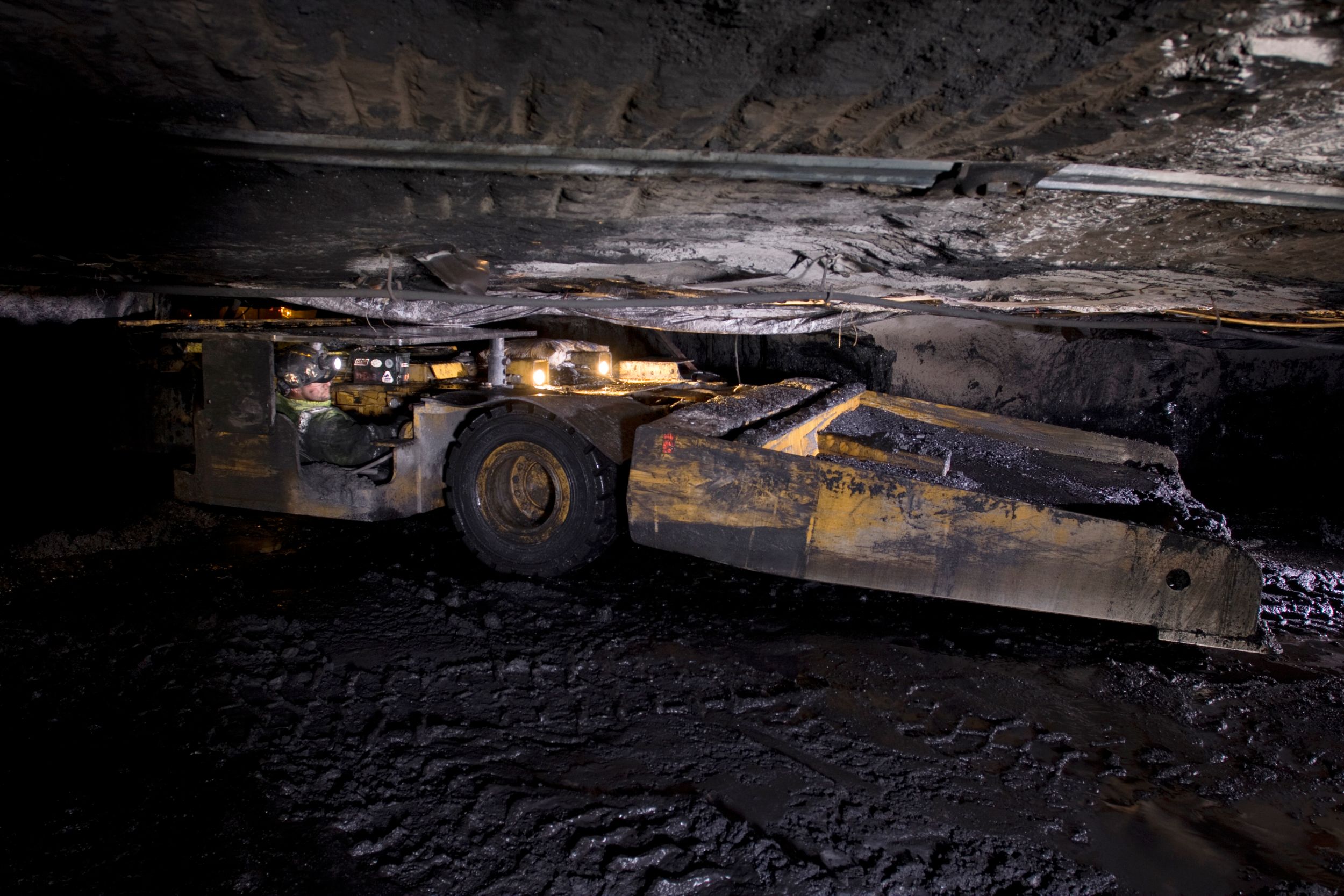

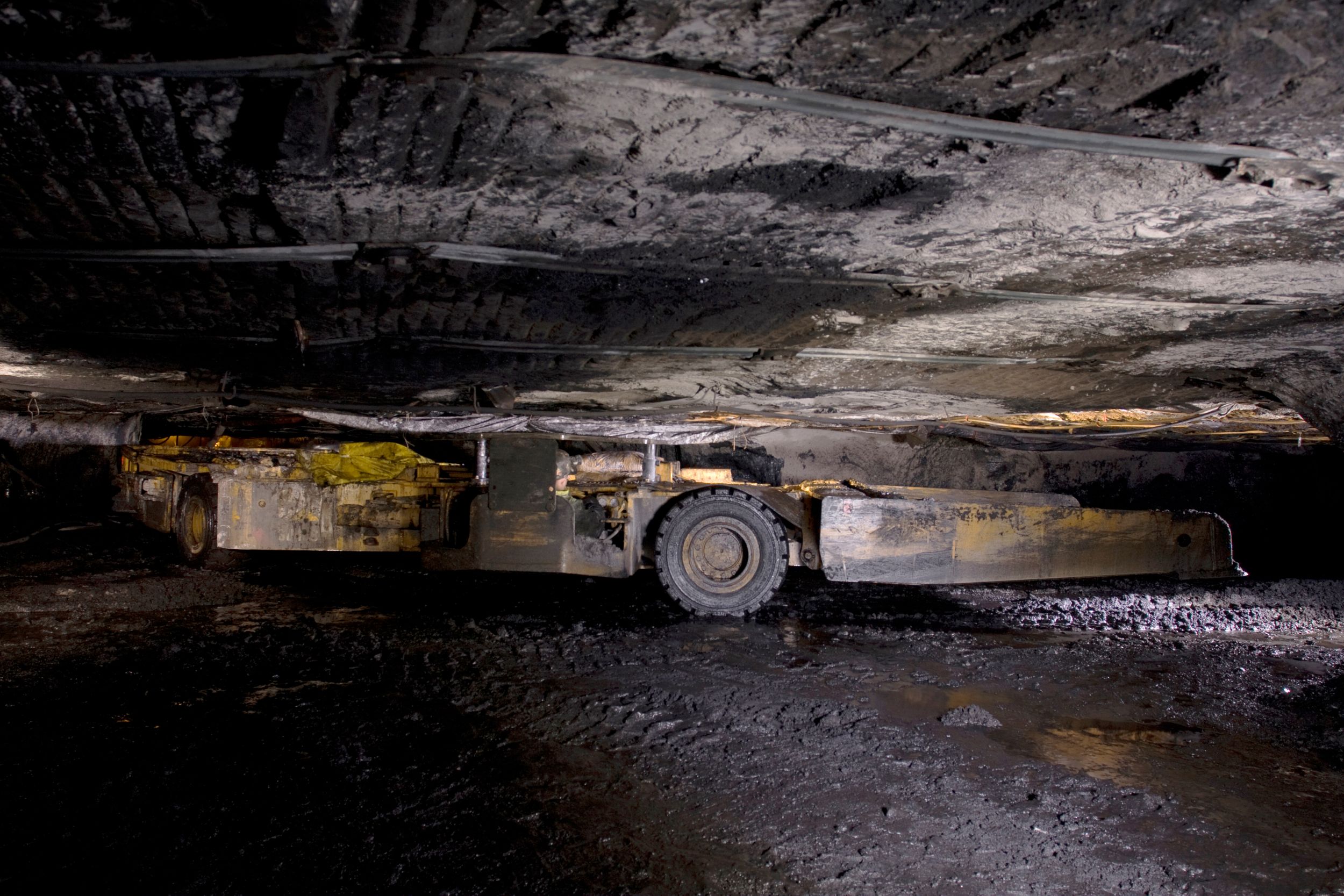

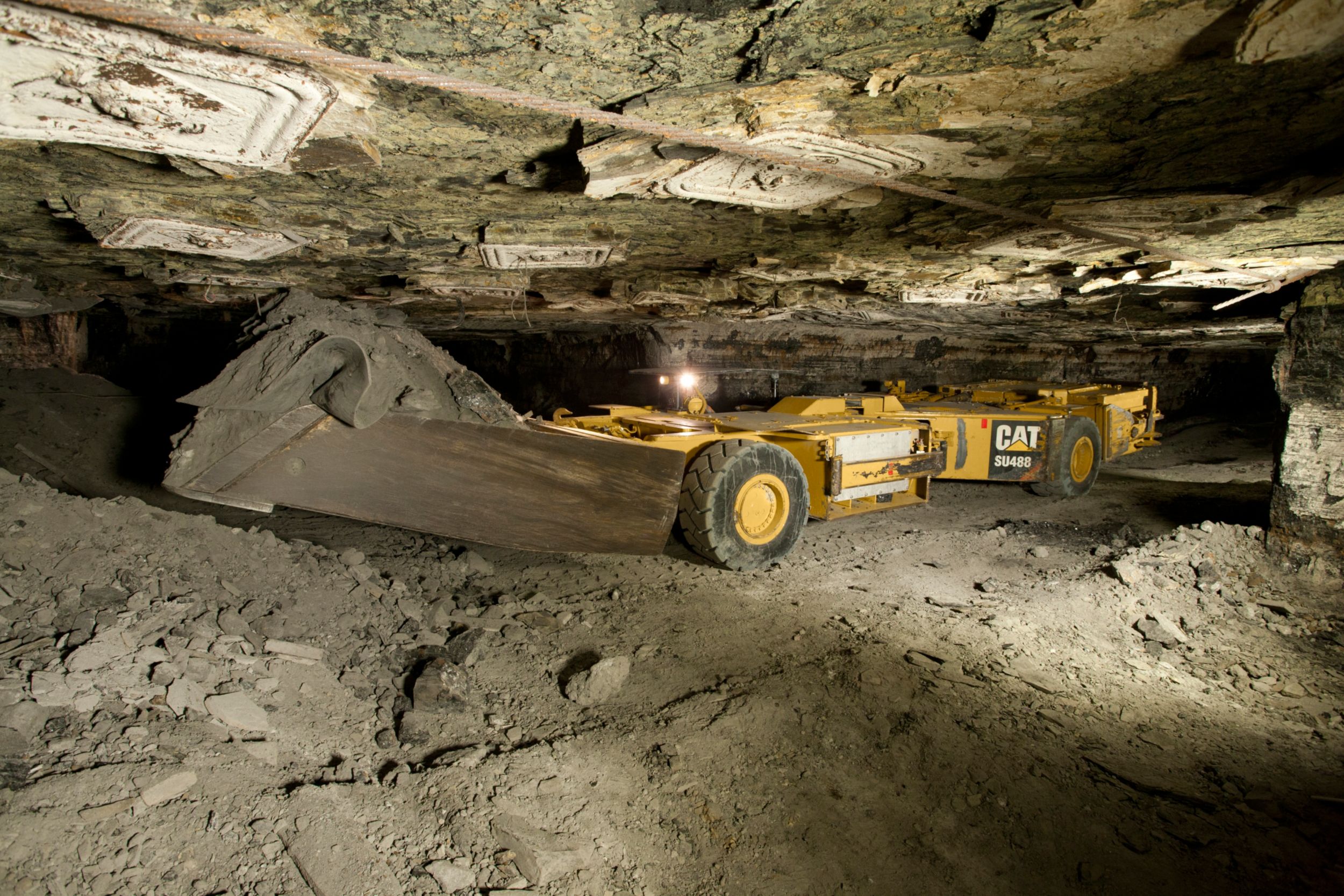

Four-wheel drive for when conditions get tough, planetary axles with wet disc service brakes, helical, parallel gearbox, spring applied, hydraulically-released parking brakes and other features all combine to provide rock climbing gradeability. With the ability to engage a battery from below grade, and to vary the ground clearance of the battery in undulating conditions, the Cat scoop is able to thrive in varying mining environments.
Heavy-duty construction for maximum reliability
BENEFITS AND FEATURES
To provide superior stability in tough conditions, the scoop offers ball bearing oscillation. The problems associated with three-point-hitch style oscillation are eliminated with the robust design of the pivot section. High-strength, low-alloy steel bearing attachment faces and quality ANSI/AWS welding help provide the reliability that our customers demand. The articulation joint features hardened spherical bushings to ensure even load distribution to the high-strength, hardened articulation pins.

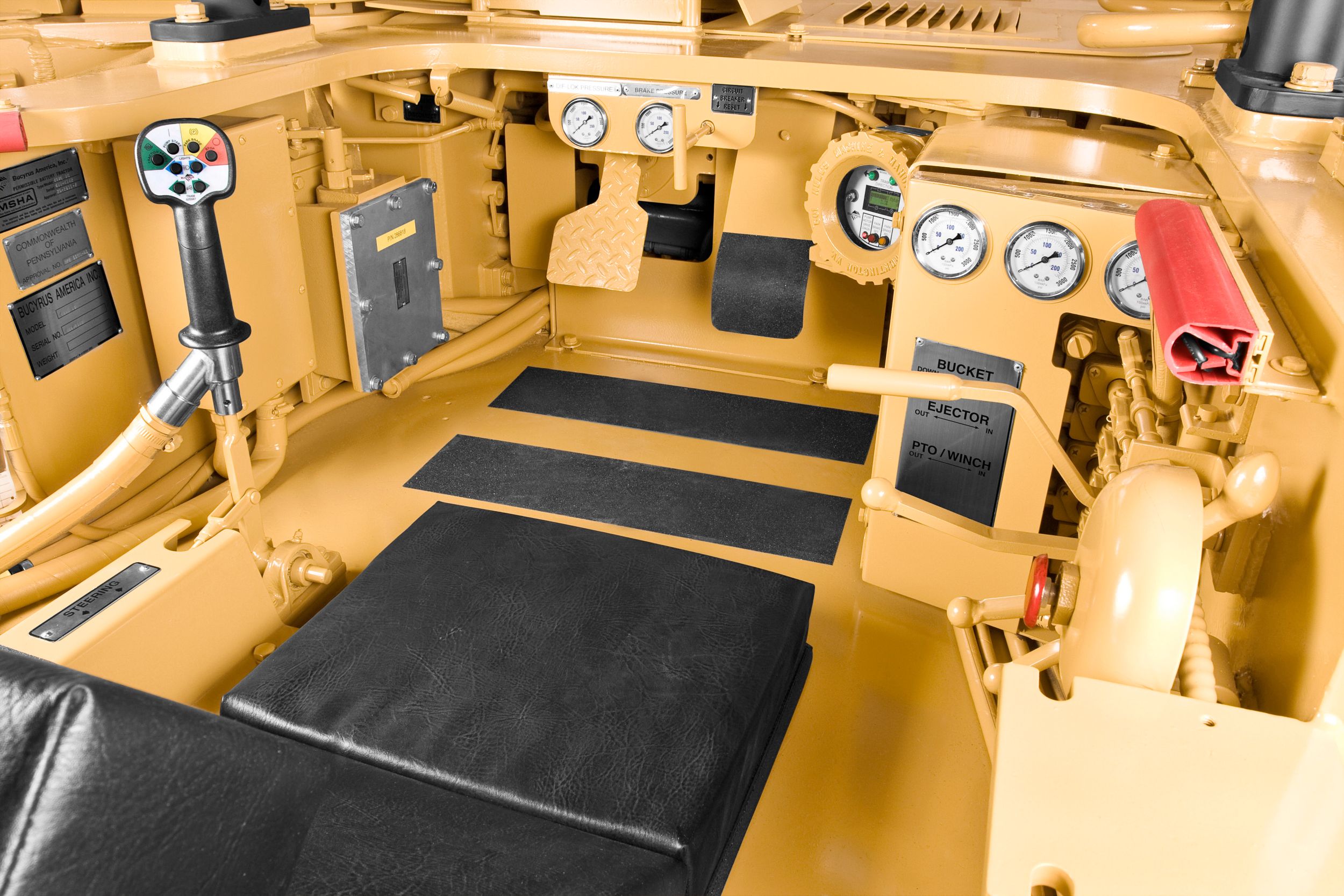

Human-factor engineered operator’s compartment
BENEFITS AND FEATURES
For long-shift productivity, operator comfort is paramount for maintaining a safe working environment. At Caterpillar, ergonomics is not just another marketing buzzword. Controls are placed in a logical, easy-to-reach position and are easily operated from the fully padded, adjustable seat.
Designed with safety as top priority
BENEFITS AND FEATURES
All Cat battery-powered face haulers and scoops are designed with safety and productivity as number one priorities. The scoop safety features include:
- Panic strips in the operator’s compartment
- Emergency stop buttons
- Fire suppression (automatic or manual activation) on both sides of the machine
- Steering lockout
- Proximity detection (on request)
- Spring applied, hydraulic release brakes
- Two key start functions
- Warning gongs
- Start up audible alarms (optional)
- Canopy over operator’s compartment
