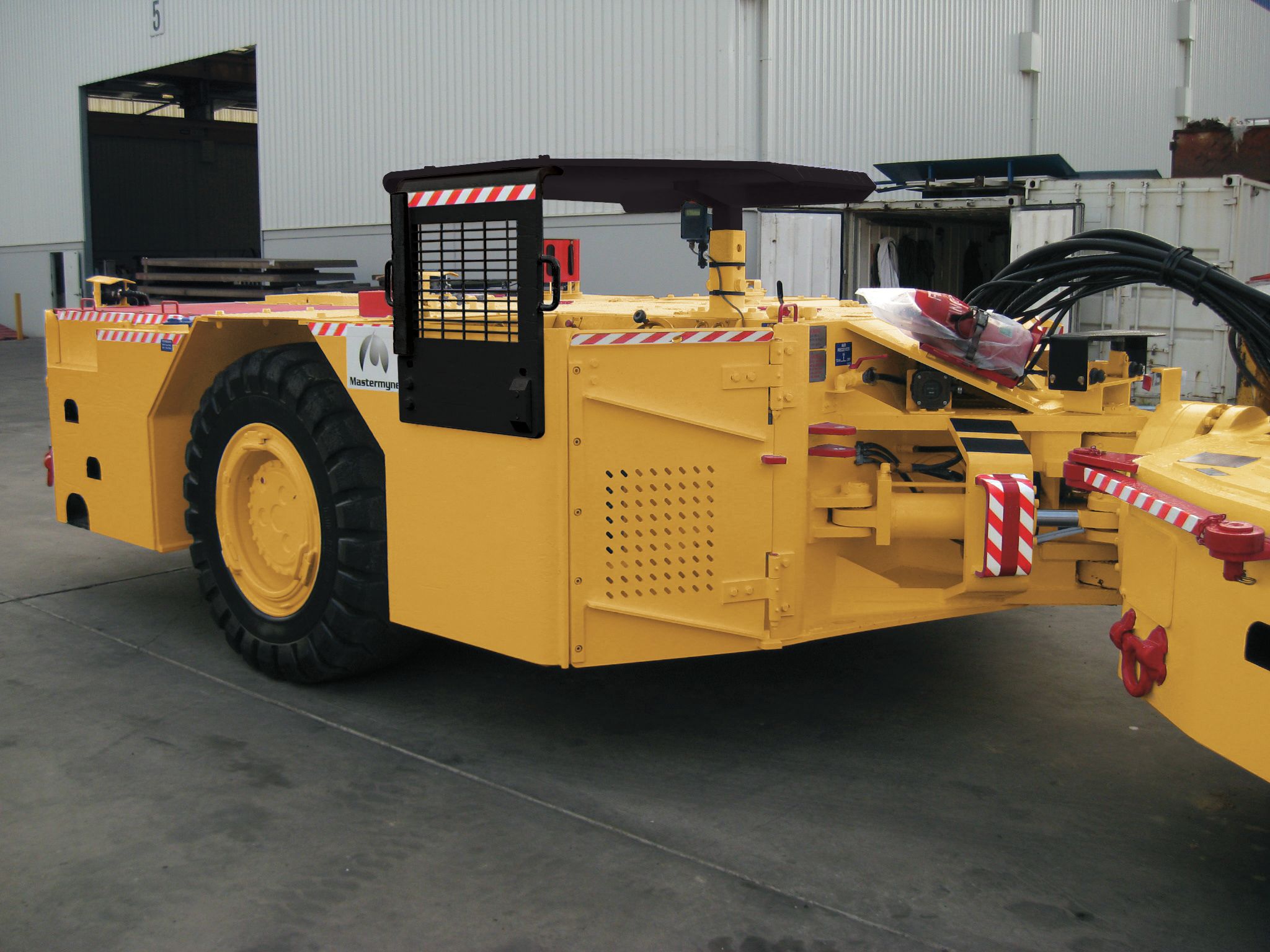

FH125 D – FACE HAULER

Back to the list

OVERVIEW SPECIFICATIONS BENEFITS AND FEATURES EQUIPMENT

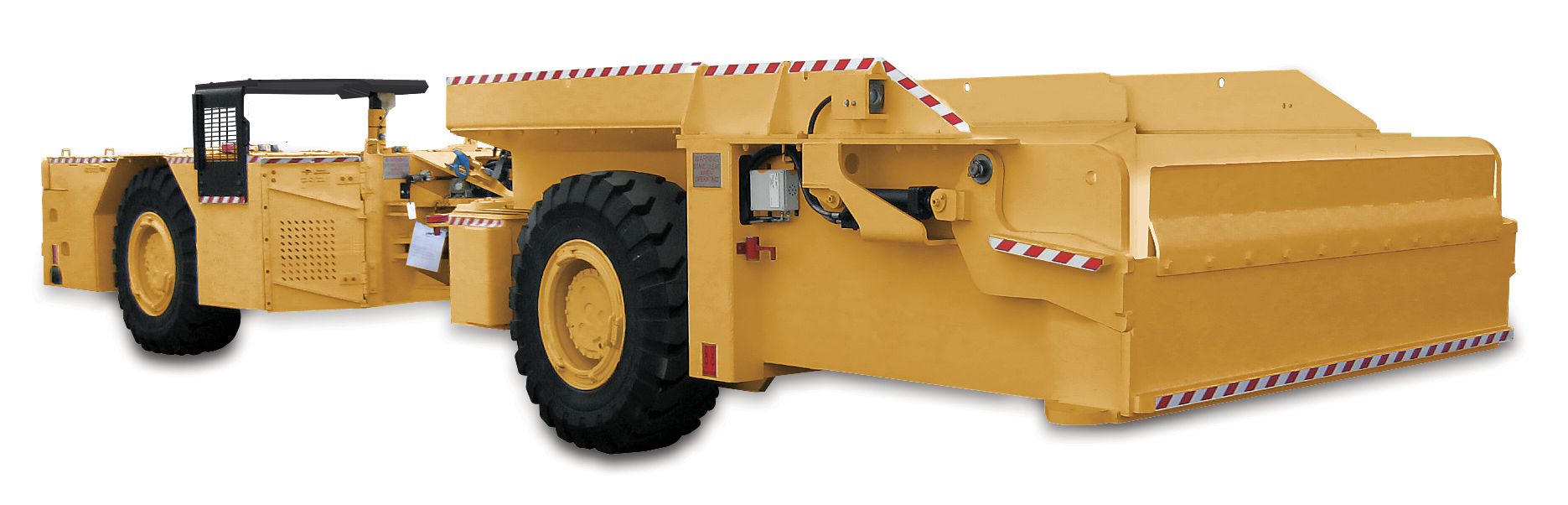

Our diesel haulers are designed for maximum haulage capacity on difficult floor conditions or gradients. These haulers comply with new regulations pertaining to fire shutdown, exhaust emission sampling and brake standards, and utilize the same power package and drive components as the range of LHD machines. Features include a rugged, reliable drive unit with chainless drive system; quick response hydraulic steering and true tracking geometry for optimum maneuverability; and a turbocharged, after-cooled, 4-cycle diesel engine with 4-speed transmission with manual or electronic push-button powershift with forward/reverse mode.

SPECIFICATIONS

Operating Height1.80 m (71 in)

Max. Carrying Capacity20 tonnes (22 tons) 15 m3 (530 ft3)

Power TypeDiesel

BENEFITS AND FEATURES

freedom of movement

Cableless face haulers have several advantages over cable-driven shuttle cars: They have ...

LEARN MORE

packed with power

Because of their superior productivity and flexibility, Caterpillar has focused on ...

LEARN MORE

compact and rugged

Space is at a premium in underground roadways, so the FH125 D is designed to be compact ...

LEARN MORE

specifications

Operating Height1.80 m (71 in)

Max. Carrying Capacity20 tonnes (22 tons) 15 m3 (530 ft3)

Power TypeDiesel

Empty Weight20.0 tonnes

Engine6-cylinder turbocharged, 4-cycle Diesel engine

Ground Clearance400 mm (16 in)

Load Discharge Time22.0 Seconds

Max. Tram Speed24.0 km/h

Overall Length (with tailgate)10.86 m

Overall Width3.3 m

Power171 kW (230 hp)

Wheel/Tires17.5 × R25

wheels

Make/Model5 Piece (Heavy Duty)

canopy

TypeAdjustable Protective Device MDG1

grade ability

Front to Rear1:4

Side to Side (Empty)1:4

fuel consumption

At Full Power37.5 L/hr

Average Mine Duty8-30 L/hr (2.1-7.9 gal/hr)

exhaust conditioner

AftertreatmentCatalytic Exhaust Purifier

Exhaust FilterReplaceable Element Except China

Exhaust Flame TrapReplaceable China and RSA

MakeCaterpillar

TypeFlameproof Wet

seating driver

SuspensionAdjust Spring/Shock Absorber

TypeCross-Seated

capacities

Consult Caterpillar for Weight Over15000.0 kg

Payload (Maximum Weight all Material)20000.0 kg

Payload (Nominal with Hungry Boards) – Other Capacities Available15.0 m3

weight

Cooling FanHydraulic Driven Fan

Cooling SystemWater Based Radiator

Displacement7.2 L

Engine Make/ModelCat 3126

Laden with 15T Load42000.0 kg

Maximum Power172 kW (230 hp) @ 2,200 rpm

Maximum Torque720 N·m (531 lb-ft) @ 1,400 rpm

TypeDiesel, Turbocharged, 4 Cycle

Unladen with Full Tanks25000.0 kg

maximum tractive effort 175 × 25 tires

1st Gear210.0 kN

electrical system

PolarityNegative Ground

Shutdown SystemElectronic, Intrinsically Safe Approved

TypeApproved Flameproof

Voltage12.0 volts

alternator

DriveHydraulic

TypeApproved Flameproof

service capacities

Axle Oil (Each)60.0 L

Engine Cooling System Water72.0 L

Engine Crankcase Oil22.0 L

Fuel Tank300.0 L

Hydraulic Tank300.0 L

Transmission/Converter Oil80.0 L

vehicle speeds unladen 175 × 25 tires

1st Gear3.8 km/h

2nd Gear7.8 km/h

3rd Gear13.6 km/h

4th Gear23.4 km/h

tires – standard

Inflation MediaAir

Inflation Pressure800.0 kPa

Ply RatingRadial

Size17.5 × 25

TypeXKA Tires

articulation

Bearing TypePin and Spherical Bearing (Top and Bottom) Fully Sealed

Degrees of Turn Either Side±42 Degrees

lights

Number/Location2 Front, 2 Rear

TypeHigh Performance, Approved Flameproof

engine speeds

Governed2600.0 RPM

High Idle2700.0 RPM

Low Idle800.0 RPM

transmission

Speeds, Forward and Reverse4

TypePower Shift with Forward/Reverse Modulation

torque converter

TypeMounted in Transmission, Single Element

axles – standard

Differential TypeBevel Gear and Pinion

Front AxleFixed

Rear AxleFixed

TypeOutboard Planetary

oscillation

Bearing TypeBall Type Slewing Roller Bearing

Degrees Up and Down from Horizontal±30°

TypeCenter Articulation Bearing

pneumatic system

Air Flow0.340 m3/min (12 ft3/min) @ 1,500 rpm

Air Receiver Volume80.0 L

Compressor TypePiston Engine Gear Driven

Governed Pressure800.0 kPa

Relief Pressure830.0 kPa

start system

Starter Motor TypeAir Turbine Type

intake air cleaner

Intake Flame TrapSpiral Wound Type

Type/MakeDry Dual Element/Caterpillar

BENEFITS AND FEATURES

FREEDOM OF MOVEMENT

Cableless face haulers have several advantages over cable-driven shuttle cars: They have ...

LEARN MORE

PACKED WITH POWER

Because of their superior productivity and flexibility, Caterpillar has focused on ...

LEARN MORE

COMPACT AND RUGGED

Space is at a premium in underground roadways, so the FH125 D is designed to be compact ...

LEARN MORE

OPERATOR SAFETY AND COMFORT

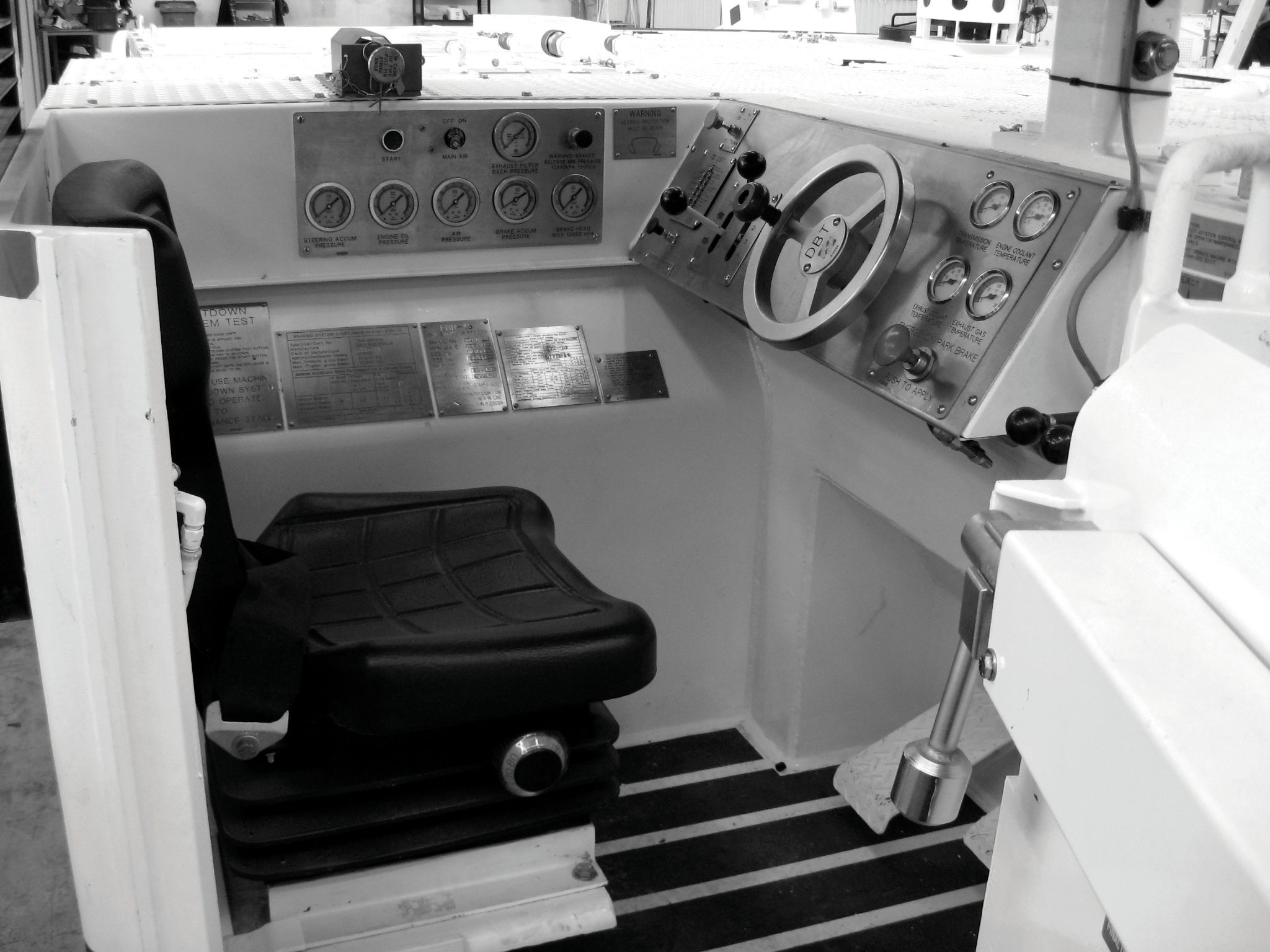

The cockpit design features intuitive, ergonomic controls and optimum visibility and ...

LEARN MORE

COOLING SYSTEMS

Caterpillar offers the option of radiator units in either vertical or horizontal ...

LEARN MORE

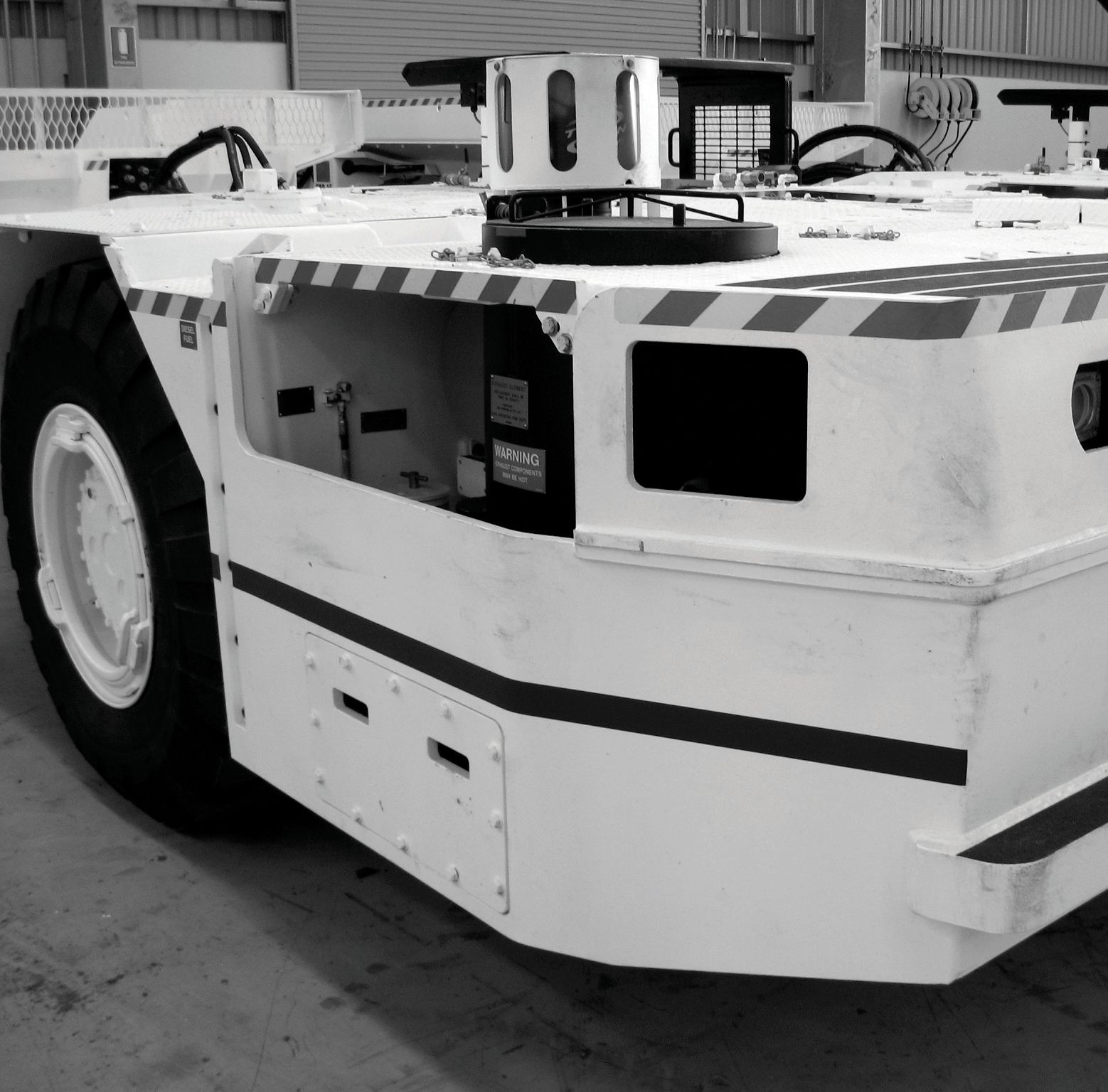

EASE OF SERVICE

All Cat diesel machines can have their operation safety checks performed by the operator ...

LEARN MORE

SOLID DRIVELINES

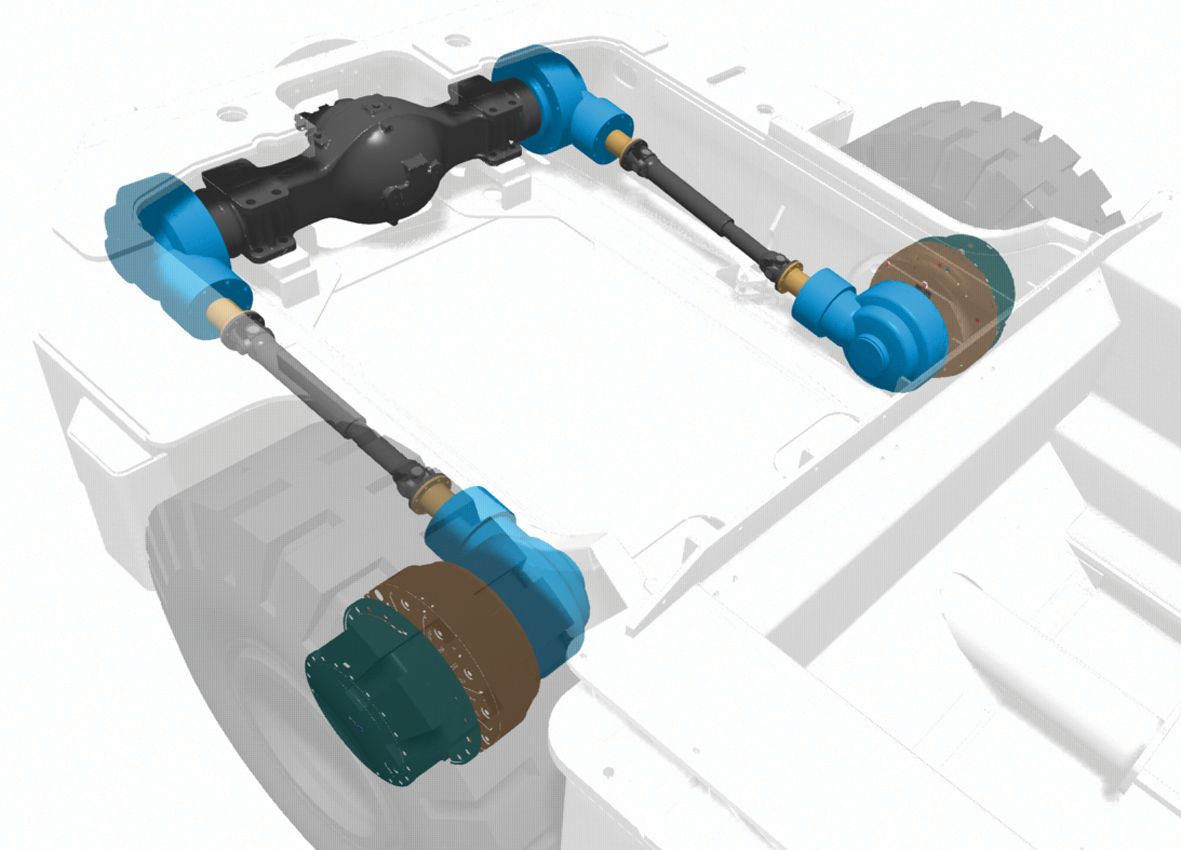

The FH125 D diesel face hauler features solid drivelines to front and rear wheels, ...

LEARN MORE

FH125 D STANDARD EQUIPMENT

up to 20 tonnes 22 tons maximum payload
certified power packages with stateoftheart dry scrubber system and dpm filtration
rugged reliable drive unit with chainless drive system
quickresponse hydraulic steering and true tracking geometry provide optimum maneuverability
fully encapsulated 6plate wetrunning disc brakes
cockpit positioned for optimum visibility and protection
electronic safety system with automatic cutoff
additional rear gate
highpowered lowemission vehicle featuring 30% lower heat generation

FH125 D OPTIONS

• filled tires – insert or foam
• fire suppression system
• auto lubrication system
• flameproof reversing camera and monitor
• 205 × 25 tires
• non flameproof versions
• trailer side hungry board arrangements
• trailer tail gate
• others available on request

Back

MOTEUR

Cableless face haulers have several advantages over cable-driven shuttle cars: They have greater freedom of movement as there are no trailing cables, and travel is not restricted by cable length, typically 200 meters or less.

BENEFITS AND FEATURES

They can travel and unload faster than shuttle cars, carry a 15–20% greater payload and operate in narrow roadways with tighter turns.

Because of their superior productivity and flexibility, Caterpillar has focused on battery- and diesel-powered face haulers.

BENEFITS AND FEATURES

Each offers distinct advantages. All machines combine compact power, capacity and maneuverability with long-term availability and efficiency.

Cat diesel face haulers incorporate the most efficient engines and powertrains available while boasting the lowest level of general body emissions among underground diesel vehicles.

BENEFITS AND FEATURES

Many proprietary developments – such as dry scrubber and wet bath exhaust systems with diesel particulate filtration and horizontal or vertical configuration cooling radiators – make Cat diesel face haulers a safe and powerful solution for your room
