PMC-V HUMAN MACHINE INTERFACE FOR PMC-D DRIVE CONTROL SYSTEMS

Back to the list

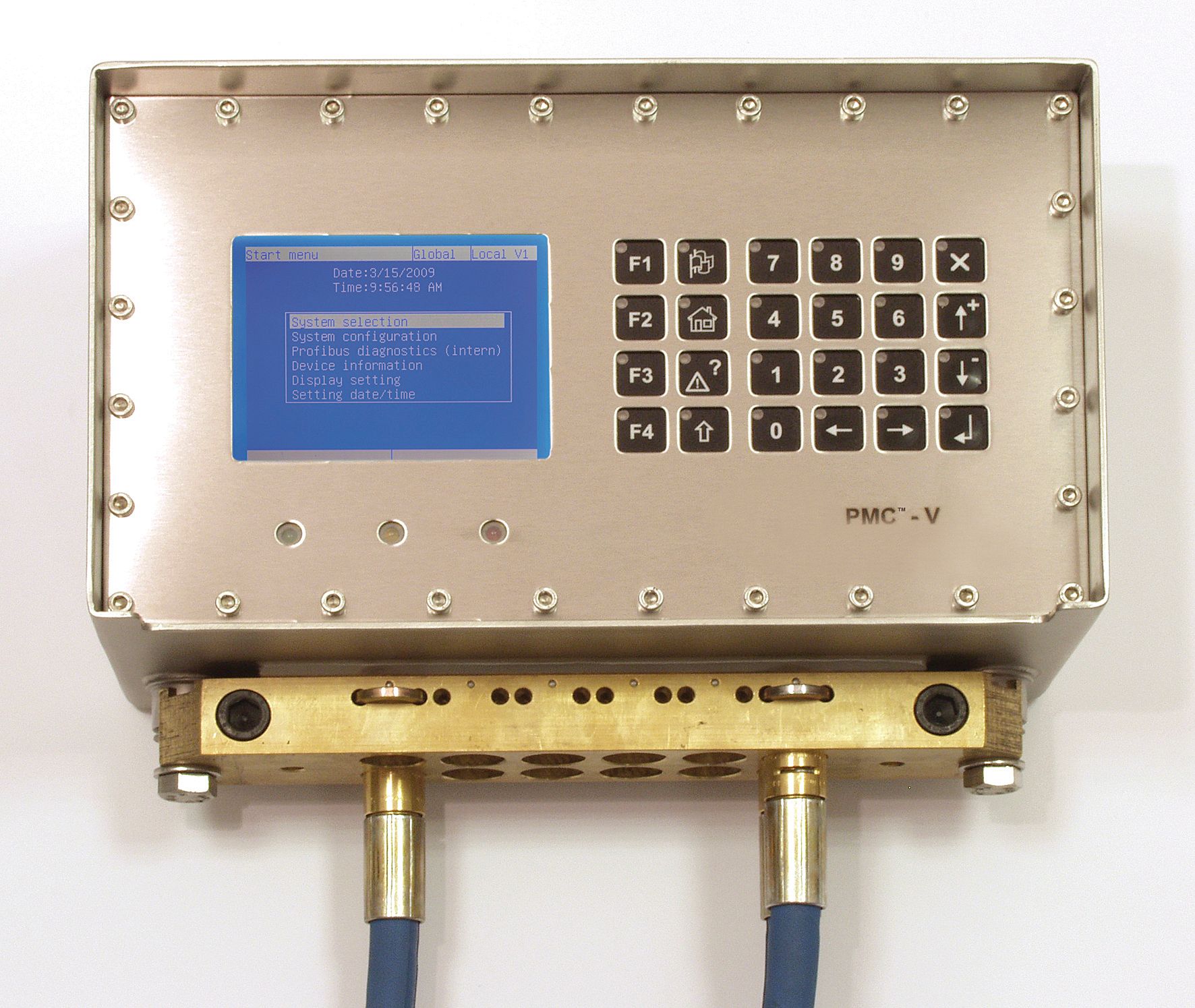

In face conveyor or plow automation systems the Cat® PMC-V provides the human machine interface (HMI) to interact with the PMC-D drive controls to operate manual mode, visualize and change parameters and show actual process values. Within a PMC-D system minimum one and typically up to 3 PMC-Vs are in equal operation.

SPECIFICATIONS

Operating SystemµITRON RTOS

Processor32Bit RISC Microcontroller TX1940CYAF, 32MHz, internal RAM 10Kbytes, ROM 256Kbytes

RAM Memory4Mbytes CMOS Static RAM, 4Mbytes Flash

BENEFITS AND FEATURES

FEATURES

features

LEARN MORE

components

Operating SystemµITRON RTOS

Processor32Bit RISC Microcontroller TX1940CYAF, 32MHz, internal RAM 10Kbytes, ROM 256Kbytes

RAM Memory4Mbytes CMOS Static RAM, 4Mbytes Flash

electrical sockets

Socket 1 - Pin 1Optocoupler Anode

Socket 1 - Pin 2Relay Contact NO: a

Socket 1 - Pin 3Relay Contact NO: b

Socket 1 - Pin 4Optocoupler Kathode

Socket 10 - Pin 1+12 V (A)

Socket 10 - Pin 2Measurement Input 3

Socket 10 - Pin 3+8.2 V

Socket 10 - Pin 4GND

Socket 11 - Pin 1Options

Socket 11 - Pin 2Options

Socket 11 - Pin 3Options

Socket 11 - Pin 4Options

Socket 12 - Pin 2Profibus: a (internal)

Socket 12 - Pin 3Profibus: b (internal)

Socket 2 - Pin 1+12 V (A)

Socket 2 - Pin 2Serial Interface: RxD

Socket 2 - Pin 3Serial Interface: TxD

Socket 2 - Pin 4GND

Socket 3 - Pin 1+12 V (B)

Socket 3 - Pin 2Serial Interface: RxD

Socket 3 - Pin 3Serial Interface: TxD

Socket 3 - Pin 4GND

Socket 4 - Pin 1+12 V (C)

Socket 4 - Pin 2Serial Interface: RxD

Socket 4 - Pin 3Serial Interface: TxD

Socket 4 - Pin 4GND

Socket 5 - Pin 1Options

Socket 5 - Pin 2Options

Socket 5 - Pin 3Options

Socket 5 - Pin 4Options

Socket 6 - Pin 2Profibus: a (internal)

Socket 6 - Pin 3Profibus: b (internal)

Socket 7 - Pin 1+12 V Input

Socket 7 - Pin 2Serial Interface: TxD

Socket 7 - Pin 3Serial Interface: RxD

Socket 7 - Pin 4GND Input

Socket 8 - Pin 1+12 V (B)

Socket 8 - Pin 2Measurement Input 1

Socket 8 - Pin 3+8.2 V

Socket 8 - Pin 4GND

Socket 9 - Pin 1+12 V (C)

Socket 9 - Pin 2Measurement Input 2

Socket 9 - Pin 3+8.2 V

Socket 9 - Pin 4GND

options designations of options equal the second and third to last characters of type designation listed on equipment

Socket 11 - Pin 1AB

Socket 11 - Pin 1**

Socket 11 - Pin 2AB (Profibus: a [external])

Socket 11 - Pin 2**

Socket 11 - Pin 3AB (Profibus: b [external])

Socket 11 - Pin 3**

Socket 11 - Pin 4**

Socket 11 - Pin 4AB

Socket 5 - Pin 1AB

Socket 5 - Pin 1**

Socket 5 - Pin 2AB (Profibus: a [external])

Socket 5 - Pin 2**

Socket 5 - Pin 3AB (Profibus: b [external])

Socket 5 - Pin 3**

Socket 5 - Pin 4AB

Socket 5 - Pin 4**

global certifications

TypesEurope: ATEX

TypesU.S.: MSHA

TypesMore certifications on demand

TypesAustralia: IECEx, ANZEx

TypesChina: MA

TypesRussia: GOST

electrical data

Supply Current - Maximum Ratings1.5 amps

Supply Current - Typical Value1.0 amps

Supply Voltage - Maximum Ratings9.5 V - 13.2 V

Supply Voltage - Typical Value12 V DC

environmental data

Temperature - Maximum Ratings-20° C - +40° C (-4° F - +104° F)

Temperature - SymbolTamb

Temperature - Typical Value20.0 ° C

dimensions approximate

Height148.0 mm

Length335.0 mm

Width241.0 mm

main technical data

Components320 × 240 pixel b/w graphics display

ComponentsIP 68

ComponentsOptional additional Profibus communication channel for communication with third party computer

Components12 SKK24 sockets for power supply, communication, sensors and actuators

ComponentsPower: 12 W

BENEFITS AND FEATURES

FEATURES

FEATURES

LEARN MORE
Back

MOTEUR

BENEFITS AND FEATURES

  • Human machine interface for configuration and customization of the PMC-D/V family
  • Diagnostic features for whole system
  • Process visualization
  • Change of parameters
  • Communication link to other systems
  • Additional sensor inputs
Features
