PMC-R ROOF SUPPORT CONTROL

Back to the list

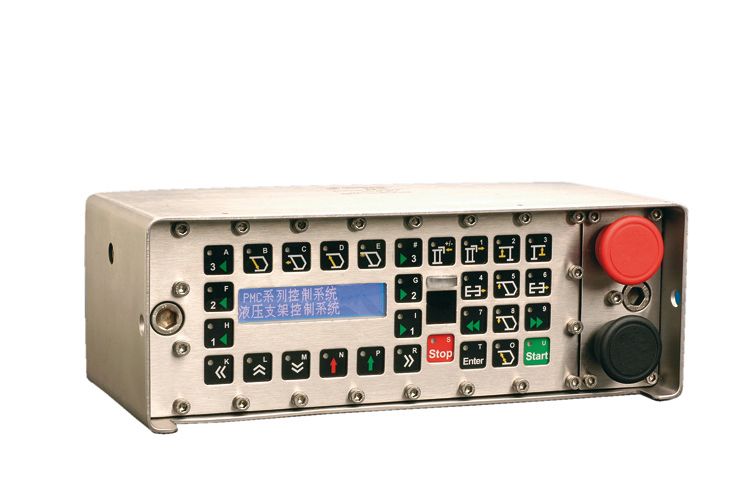

The intrinsically-safe Cat® PMC-R control units are used on shearer or plow faces to provide medium to high level of longwall automation. Each Roof Support needs to be equipped with one PMC-R control unit and a solenoid driver to operate the in-shield hydraulic functions and a set of peripheral components, like sensors for pressures and shield advance. The PMC-R can control and display all functions of a shield and is simultaneously the interface between operator and machine (HMI). The PMC-R system can control all individual shield functions based on a reliable network. As an interactive system, it allows the user to execute single shield functions as well as automatic functions. Important process values are continuously displayed as feedback for the operator.

SPECIFICATIONS

Operating SystemµITRON RTOS

Processor16Bit Microcontroller TMP91CW12AF, 27MHz, internal RAM 4Kbytes, ROM 125Kbytes

RAM Memory2Mbytes CMOS Static RAM, 4Mbytes Flash

BENEFITS AND FEATURES

FEATURES

features

LEARN MORE
EXEMPLARILY SYSTEM LAYOUT OF A PMC-R SYSTEM (SHEARER FACE)

exemplarily system layout of ...

LEARN MORE

components

Operating SystemµITRON RTOS

Processor16Bit Microcontroller TMP91CW12AF, 27MHz, internal RAM 4Kbytes, ROM 125Kbytes

RAM Memory2Mbytes CMOS Static RAM, 4Mbytes Flash

dimensions approximate rear side view of the pmcr

Height116.0 mm

Length320.0 mm

Width178.0 mm

global certifications

TypesEurope: ATEX

TypesU.S.: MSHA

TypesMore certifications on demand

TypesAustralia: IECEx, ANZEx

TypesChina: MA

TypesRussia: GOST

dimensions approximate front view of the pmcr

Height116.0 mm

Length320.0 mm

Width178.0 mm

dimensions approximate solenoid driver module

Height37.0 mm

Length347.0 mm

Width68.0 mm

pin assignment of solenoid driver module type sd1

Socket S101 - Pin 112.0 volts

Socket S101 - Pin 2 (Solenoid 1)TX

Socket S101 - Pin 3 (Solenoid 2)RX

Sockets S301-S306 - Pin 112.0 volts

Sockets S301-S306 - Pin 2 (Solenoid 1)GND1

Sockets S301-S306 - Pin 3 (Solenoid 2)GND2

Sockets S301-S306 - Pin 4GND

Sockets S307-S311 - Pin 112.0 volts

Sockets S307-S311 - Pin 2 (Solenoid 1)GND1

Sockets S307-S311 - Pin 3 (Solenoid 2)GND2

Sockets S307-S311 - Pin 40 - 1 mA; 0.5 - 4.5 V

electrical data

Supply Current - Maximum Ratings2.0 amps

Supply Current - Typical Value1.0 amps

Supply Voltage - Maximum Ratings9.5 V - 13.2 V

Supply Voltage - Typical Value12 V DC

environmental data

Temperature - Maximum Ratings-20° C - +40° C (-4° F - +140° F)

Temperature - SymbolTamb

Temperature - Typical Value20.0 ° C

BENEFITS AND FEATURES

FEATURES

FEATURES

LEARN MORE
EXEMPLARILY SYSTEM LAYOUT OF A PMC-R SYSTEM (SHEARER FACE)

EXEMPLARILY SYSTEM LAYOUT OF ...

LEARN MORE
Back

MOTEUR

BENEFITS AND FEATURES

  • Robust design (SKK24 sockets, hose cables, steel housing)
  • IP 68 rating (48 hr @ 1 m [3.28 ft] under water)
  • Separate emergence and lock switch
  • HMI with 30 multi feedback keys (sound, pressure point, led light)
  • Two (2) line LCD graphical display
  • Multi language support
  • Maintainability (brass bar mounting, screws from the front)
  • Integrated infrared
  • Up to three (3) separate solenoid driver modules
Features

BENEFITS AND FEATURES

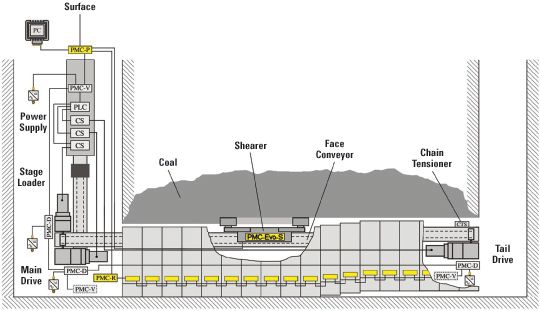

Exemplarily System Layout of a PMC-R System (Shearer Face)

BENEFITS AND FEATURES

  • “Distributed Intelligence in each shield”
  • Wide range of sensors and multiple solenoid drivers
  • Easy diagnosis through communication between PMC®-R controls
  • Various auto sequences
  • Automated conveyor push modes
  • Conveyor pullback functions
  • Automated water spray functions
  • Outrigger steering for conveyor steering (mostly plow faces)
  • Automation of:
- Block anchorage - Flipper - Sliding canopy - Gap shield - Several steering cylinder automation modes dependent on roof conditions
Main Features PMC-R Control System

BENEFITS AND FEATURES

  • Solenoid Driver Board (minimum one per Roof Support)
  • Pressure Sensor
  • Reed Rod
  • Proximity Switch
  • IR Transmitter and Sensor
  • LED Warning Light
  • IS Power Supply
  • Diverse Data Coupler
  • 3D-Tilt Sensor and 3D-Tilt Monitor
  • Double Solenoid Valve
Peripheral Equipment

BENEFITS AND FEATURES

  • The PMC-R solenoid driver module is placed at a distance from the PMC-R in accordance with the modular concept.
  • The solenoid driver module can activate up to 22 valve functions, additional lights and sound modules or relays. As well, additional sensors could be read in by the solenoid driver module.
  • All connectors OS4 type
Solenoid Driver Module
