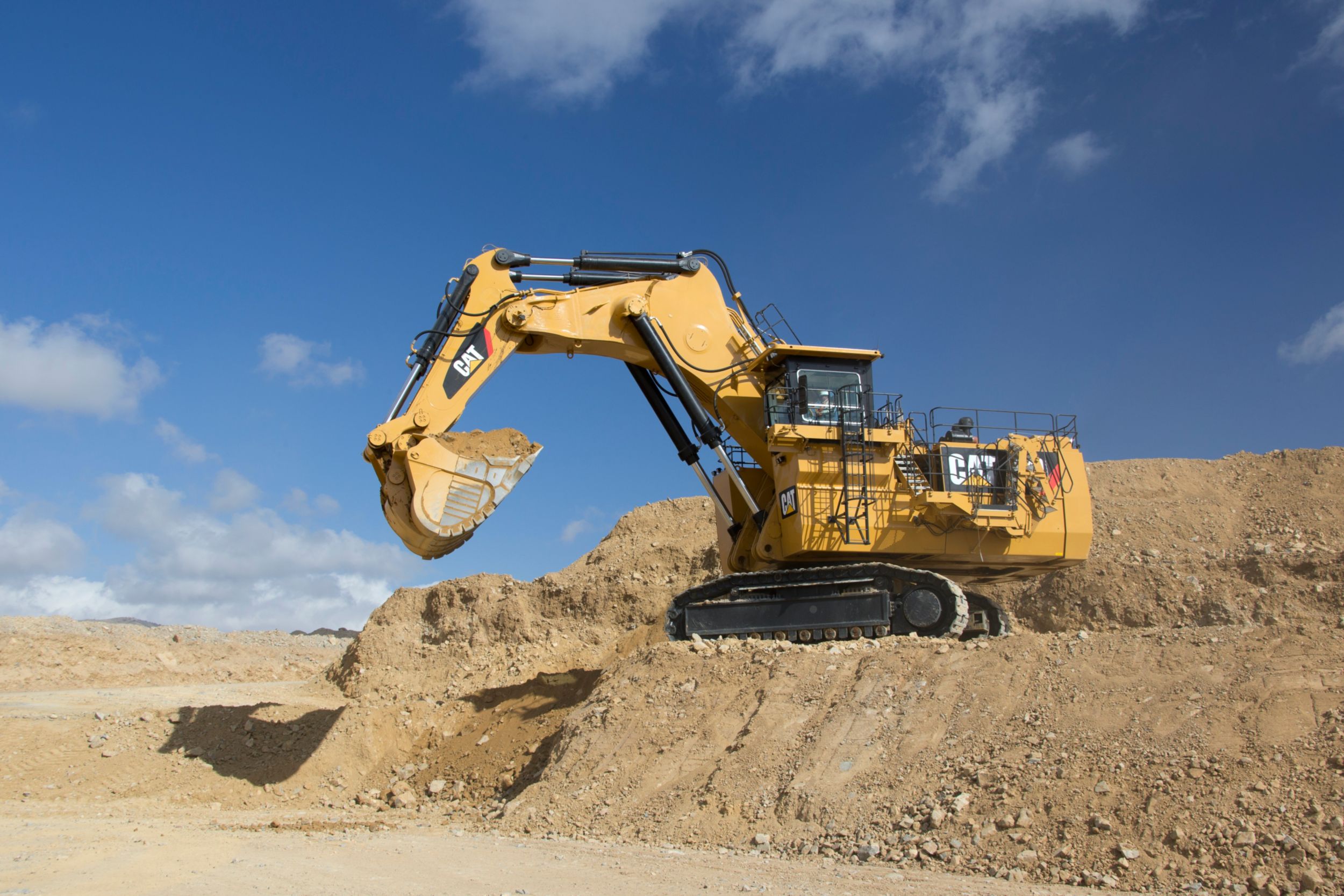

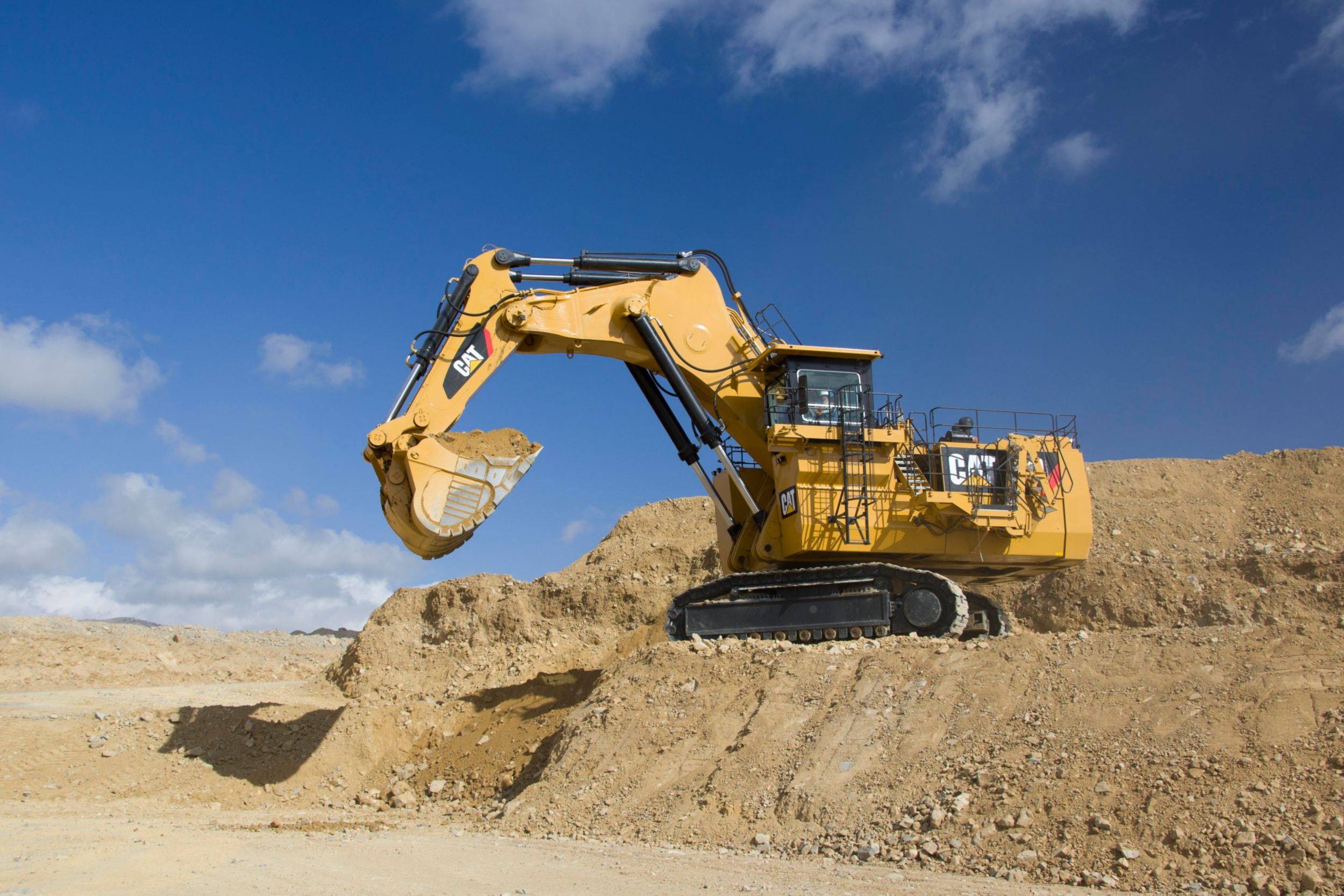

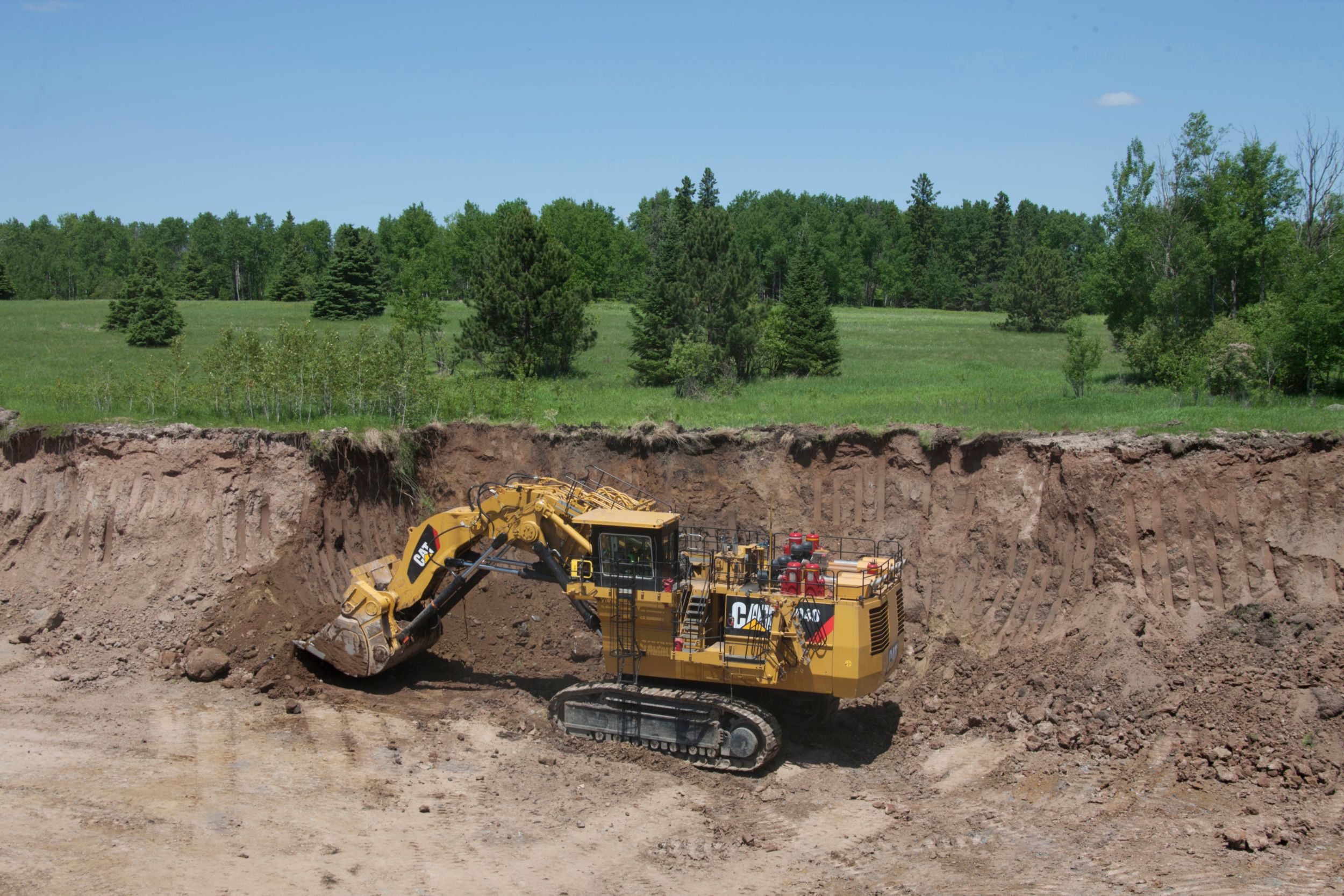

6040/6040 FS HYDRAULIC SHOVEL
We understand the challenges you face, the importance of reliability, and the relationship between uptime and productivity. That’s why we continually strive to produce the safest, most reliable and productive hydraulic mining shovels possible. Offering the widest payload range of any manufacturer in the industry, the ability to optimally pair with our popular line of mining trucks, and the support of our world-class Cat dealer network, we are uniquely positioned to partner with you to help achieve your productivity targets. We understand what matters to you. Our hydraulic mining shovels are built with you in mind. Because in mining, every day matters and every load counts.
SPECIFICATIONS
Engine Output - SAE J1995Cat C32 - 1516 kW (2,032 hp)
Standard Bucket CapacityFace Shovel (heaped 2:1) - 22.0 m3 (28.8 yd3); Backhoe (heaped 1:1) - 22.0 m3 (28.8 yd3)
Operating WeightFace Shovel - 405 tonnes (446 tons); Backhoe - 407 tonnes (449 tons)
BENEFITS AND FEATURES
general data
Engine Output - SAE J1995Cat C32 - 1516 kW (2,032 hp)
Standard Bucket CapacityFace Shovel (heaped 2:1) - 22.0 m3 (28.8 yd3); Backhoe (heaped 1:1) - 22.0 m3 (28.8 yd3)
Operating WeightFace Shovel - 405 tonnes (446 tons); Backhoe - 407 tonnes (449 tons)
electrical system diesel drive
Batteries in series/parallel installation6 × 210 Ah - 12V each; 630 Ah - 24V in total
Components13 LED service lights
ComponentsBattery isolation relays and switches
ComponentsEmergency stop switches accessible from ground level, in engine module and in operator’s cab
Components10 LED high-brightness working flood lights - 8 for working area - 2 for rear end
Components2 LED high-brightness access flood lights
System voltage24V
operating weight
6040 FS - Ground pressure24.1 N/cm2 (35.0 psi)
6040 FS - NoteOther track pads available on request
6040 FS - Operating weight404600.0 kg
6040 FS - Standard track pads1200.0 mm
6040 - Ground pressure24.3 N/cm2 (35.3 psi)
6040 - NoteOther track pads available on request
6040 - Operating weight407300.0 kg
6040 - Standard track pads1200.0 mm
operating specifications
Bucket Payload40.0 tonnes
Operating Weight - Backhoe407.0 tonnes
Operating Weight - Front Shovel405.0 tonnes
engine
Engine Model2 × Cat® C32
Gross Power - SAE J19951516.0 kW
Net Power - SAE J13491516.0 kW
NoteElectric drive option available (1400 kW) on 6040 AC/6040 AC FS
attachments
All buckets (FS and BH) are equipped with a wear package consisting of:- Special liner material covering main wear areas inside and outside of bucket - Lip shrouds between teeth
Shovel attachment with unique TriPower kinematics ensuring the following main features:- Automatic roll-back limiter to prevent material spillage - Kinematic assistance to hydraulic forces
Shovel attachment with unique TriPower kinematics ensuring the following main features:- Horizontal automatic constant-angle bucket guidance - Vertical automatic constant-angle bucket guidance
Shovel attachment with unique TriPower kinematics ensuring the following main features:- Constant boom momentum throughout the whole lift arc - Crowd force assistance
TypeInspection hole in monoboom BH
TypePressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve
TypeSpecial wear packages for highly abrasive materials on request
TypeCatwalks with rails at boom (FS and BH)
TypeWelding procedures allow for internal counter-welding (double prep weld) wherever possible
TypeBoom and sticks are stress-relieved after welding
TypeBoom and sticks are torsion-resistant, welded box design of high-tensile steel with massive steel casting at pivot areas
retractable service station
InstallationRetractable service station installed underneath the engine module and easily accessible from ground
diesel engines
Alternators2 × 150 A
AspirationTurbocharged and air-to-air aftercooled
Bore145.0 mm
ComponentsAdditional high-capacity water separator
ComponentsTwo-stage fuel filter including water separator
ComponentsHeavy-duty air filters
ComponentsMicroprocessed engine management
ComponentsHydraulically driven radiator fan with electronically controlled fan speed
Displacement32.1 L
EmissionsU.S. EPA flex
Fuel tank capacity7800.0 L
Make and model2 × Cat C32 (Tier 2)
Max. altitude without deration - at 10° C above sea level2500.0 m
Number of cylinders (each engine)12
Stroke162.0 mm
Total rated gross power - SAE J19951516 kW 1,750 min-1 (2,032 hp 1,750 min-1)
Total rated net power - ISO 3046/11516 kW 1,750 min-1 (2,032 hp 1,750 min-1)
Total rated net power - SAE J13491516 kW 1,750 min-1 (2,032 hp 1,750 min-1)
electric motor 6040 ac6040 ac fs
Frequency50 Hz (60 Hz on request)
Output1400.0 kW
Rated Current IN156 A (at 6.6 kV)
Revolutions1,500 min-1 (1,800 min-1 at 60 Hz)
Starting current350% of IN (197% of IN Optional)
TypePower limit control by Pump Managing System
TypeCustom-made electric motor with increased gap between rotor and stator to withstand severe mining conditions
TypeSquirrel cage induction motor
Voltage6.6 kV ±10% (other on request)
automatic lubrication system
Capacity of grease container1000.0 L
TypeDual-circuit system with hydraulically driven heavy-duty pumps and electronic time relay control adjust the pause/lube times
TypeSystem failures displayed by Board Control System
TypeGrease filters (200 μm) between service station and container, as well as directly behind grease pump
TypeConnected to the lubrication system are: - pivot points of attachment, bucket and cylinders
TypeConnected to the lubrication system are: - raceways of the swing roller bearing - two greasing pinions for the internal gearing of the swing ring
undercarriage
Bottom Rollers (each side)7

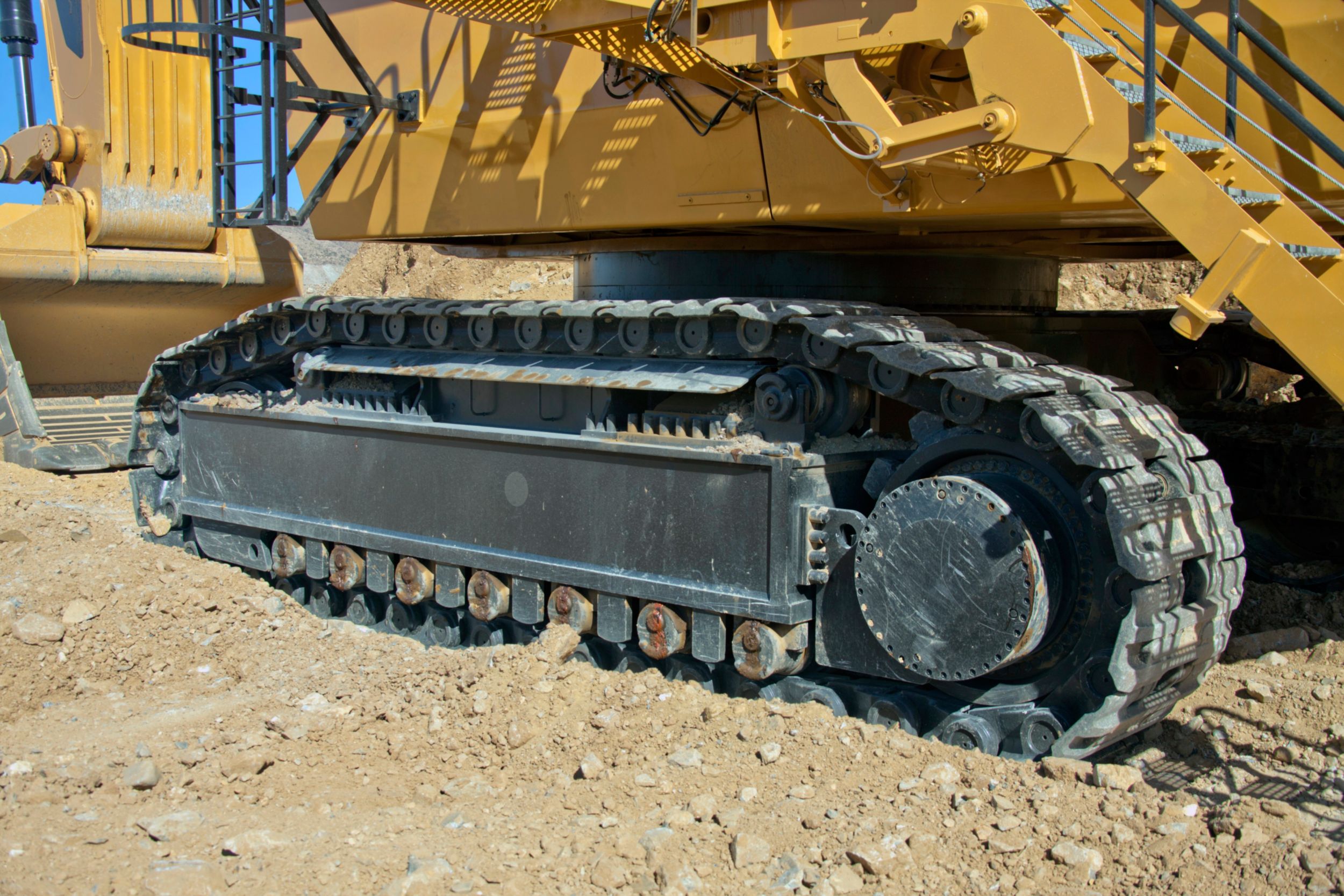

ComponentsAll running surfaces of sprockets, idlers, rollers and track links are hardened
ComponentsAcoustic travel alarm
ComponentsCast double-grouser combined pad-links with bushings connected by hardened full floating pins
ComponentsAll teeth contact areas of sprocket and pad links are hardened
ComponentsFully hydraulic self-adjusting track tensioning system with membrane accumulator
ComponentsAutomatic hydraulic retarder valve to prevent over-speed on downhill travel
Gradeability of travel drives - maximum57.0 %
Maximum tractive force2097.0 kN
Parking BrakeWet multiple disc brake, spring applied/hydraulically released
Support Rollers (each side)2 plus a skid plate in between
Track Pads (each side)42
Travel Drives (each side)1 planetary transmission with 2 two-stage axial piston motors
Travel Speed: 1st Stage (maximum)1.5 km/h
Travel Speed: 2nd Stage (maximum)2.5 km/h
attachments
All buckets (FS and BH) are equipped with a wear package consisting of:- Wing shrouds on side walls - Heel shrouds at bottom edges
TypeGuards for shovel cylinders (FS)
operator’s cab
Board Control System (BCS III) Features:USB, Lan (TCP/IP) and CAN BUS interfaces for data export
Board Control System (BCS III) Features:On-screen PDF documentation (e.g. operating instructions, technical handbook, spare parts catalog, electric circuit diagram)
Board Control System (BCS III) Features:Robust instrument panel including large (12 in) colored touch screen for intuitive handling
Board Control System (BCS III) Features:Electronic monitoring, data logging
diagnostic system for vital signs
service data of engines, hydraulic lube systems
operator’s cab
Board Control System (BCS III) Features:On-screen troubleshooting assistance
Board Control System (BCS III) Features:Graphic charts of logged data
Board Control System (BCS III) Features:Fault memory with storage of related conditions
ComponentsSwitch in seat cushion to automatically neutralize the hydraulic controls when operator leaves the seat
ComponentsPneumatically cushioned and multi-adjustable comfort seat with lumbar support, seat heating, safety belt, head- and armrests
ComponentsRoller blinds at all windows
ComponentsWindshield with parallel intermittent wiper/washer
ComponentsAll-round safety glass, armored windshield and sliding side window
ComponentsFOPS (rock guard; approved according to DIN ISO 3449) integrated into cab structure
ComponentsUnder roof mounted heating ventilating and air conditioning system
ComponentsJoystick controls integrated in independently adjustable seat consoles
ComponentsFold-away auxiliary seat with safety belt
ComponentsExternal sun shields at side and rear windows
ComponentsSliding emergency ladder (kick-down type) with ladder cage
ComponentsMachine access via retractable access stairway, stairway angle approximately 45°, hydraulically operated
ComponentsRobust instrument panel including large colored BCS screen with transflective technology
Internal dimensions of cab - Height2150.0 mm
Internal dimensions of cab - Length2200.0 mm
Internal dimensions of cab - Width1600.0 mm
Operator’s eye level - approximately6.8 m
hydraulic oil cooling
ComponentsGear type cooling pumps supplying high-volume, low-pressure oil to aluminum coolers
ComponentsVariable axial piston pumps supplying low-volume, high-pressure oil to fans
Diameter of fans2 × 1524 mm (2 × 60 in)
FeaturesCooling system fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running
FeaturesFan speed is thermostatically controlled
FeaturesExtremely high cooling efficiency to ensure optimum oil temperature
Oil flow of cooling pumps - AC version4 × 379 L/min (4 × 100 gal/min)
Oil flow of cooling pumps - Diesel version2 × 799 L/min (2 × 211 gal/min)
hydraulic system with pump managing system
Hydraulic tank capacity - approximately - AC version4000.0 L
Hydraulic tank capacity - approximately - Diesel version3400.0 L
Main pumps - AC version4 × variable flow axial piston pumps
Main pumps - Diesel version4 × variable swash plate pumps
Main pumps - Maximum oil flow - AC version4 × 746 L/min (4 × 197 gal/min)
Main pumps - Maximum oil flow - Diesel version4 × 724 L/min (4 × 191 gal/min)
Maximum pressure, attachment300.0 bar
Maximum pressure, swing pumps350.0 bar
Maximum pressure, travel350.0 bar
Swing pumps - AC version3 × reversible swash plate pump
Swing pumps - Diesel version4 × reversible swash plate pump
Swing pumps - Maximum oil flow - AC version3 × 491 L/min (3 × 130 gal/min)
Swing pumps - Maximum oil flow - Diesel version4 × 321 L/min (4 × 85 gal/min)
Total volume of hydraulic oil - approximately - AC version6400.0 L
Total volume of hydraulic oil - approximately - Diesel version5800.0 L
bucket
Bucket Capacity - Backhoe (heaped 1:1)22.0 m3
Bucket Capacity - Front Shovel (heaped 2:1)22.0 m3
swing system
FeaturesDirt wipers at swing ring to prevent build-up of debris between swing ring and carbody
FeaturesClosed-loop swing circuit with torque control
FeaturesHydraulic braking of the swing motion by counteracting control
FeaturesAll raceways and the internal gearing of swing ring supplied by automatic central lubrication system
Maximum swing speed - AC version5.1 RPM
Maximum swing speed - Diesel version4.7 RPM
Parking BrakeWet multiple disc brake, spring-loaded/hydraulically released
Swing Drives3 compact planetary transmissions with axial piston motors
Swing RingTriple-race roller bearing with sealed internal gearing
BENEFITS AND FEATURES
CLOSED-LOOP SWING CIRCUIT
More Efficient Energy Use and Faster Boom Lift Motion During Swing
LEARN MOREFRONT ATTACHMENT OPTIONS AND ...
Bolstering Your Investment with Robust and Durable Structures
LEARN MORECUSTOMER SUPPORT
Stay Up and Running with Service and Support from Our Unmatched Global Network
LEARN MORE6040/6040 FS STANDARD EQUIPMENT
- tripower shovel attachment
- independent oil cooling system
- spacious walkthrough machine house
- 5circuit hydraulic system
- onboard electronics system control and monitoring platform camp
- board control system bcs iii
- torque control in closedloop swing circuit
- automatic central lubrication system
- led working lights
6040/6040 FS OPTIONS
- general
Custom paint - superstructure
Hydraulic service crane on superstructure with auxiliary engine
One or two round container(s) for standard 200 L (53 gal) barrels (instead of 1000 L (264 gal) grease container)
Filling of round container(s) via service station
Various cold-weather options - cab
Dual (redundancy) heating ventilating and air conditioning system
Cab heating
Camera monitoring system - undercarriage
Track pad width 1400 mm (4 ft 7 in) or 1600 mm (5 ft 3 in)
Automatic lubrication of rollers by central lube system
Cover plate under carbody (belly plate)
Additional optional equipment available on request.

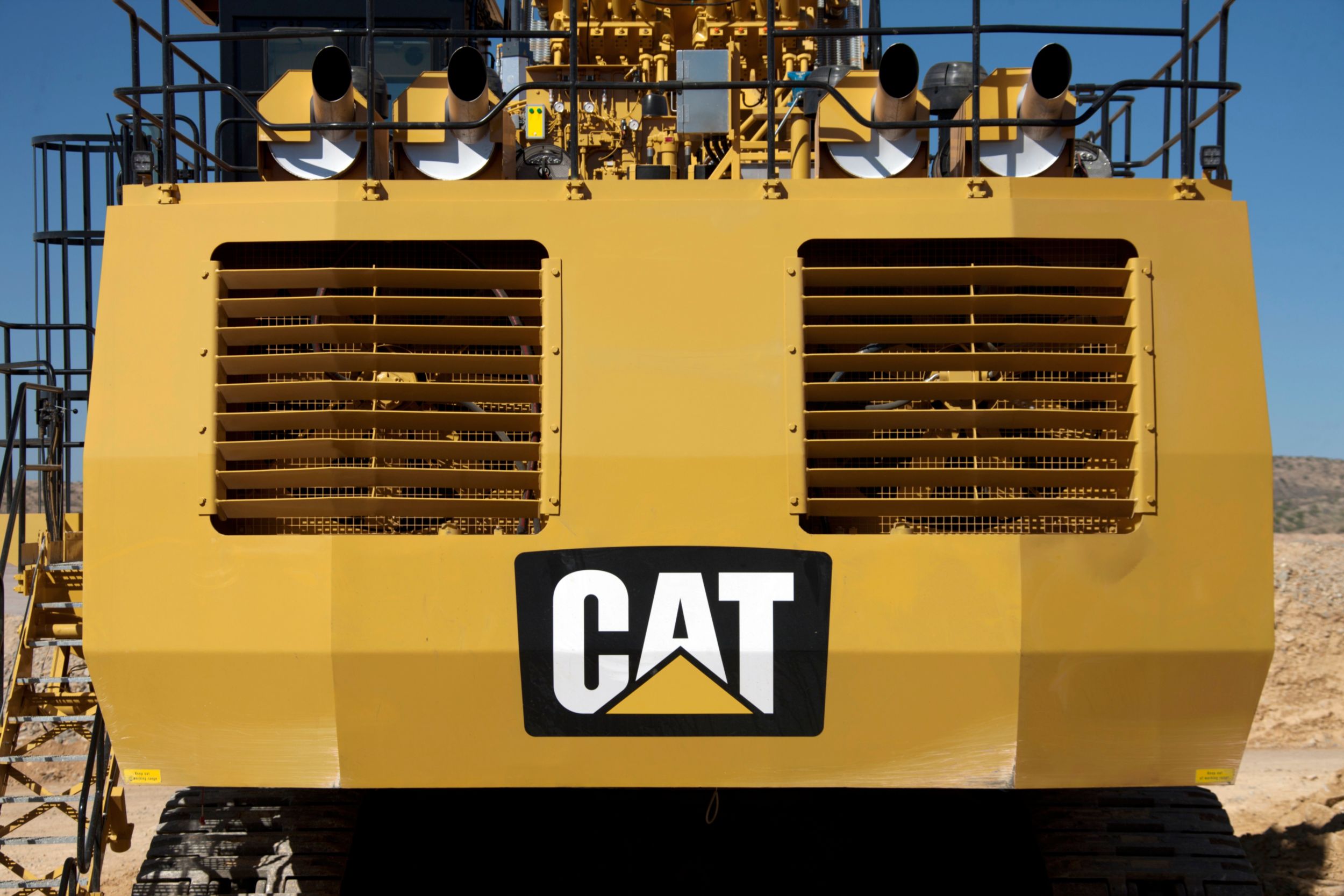

MOTEUR
Balanced Combination of Power and Efficiency
BENEFITS AND FEATURES
Meeting Your Site Specific Needs with a Choice of Robust Drive System Options Giving you the option to choose the drive system best suited for your operation, the Cat 6040/6040 FS can be equipped with either two diesel engines for greater mobility, or an electric drive for better efficiency.
Reliable Cat C32 ACERT™ Engines Delivering durable, reliable power that will keep your primary loading tool producing, the C32 has proven its ability to perform in harsh mining conditions. Offering low operating costs, and supported 24/7 by your local Cat dealer, the C32 will help you achieve your production and profitability targets.
Efficient Electric Drive System on 6040 AC/6040 AC FS Providing a lower cost-per-ton alternative to diesel powered hydraulic mining shovels, our electric drive option maintains the ruggedness you need and offers superior availability since no refueling and less service is required. The 6040 AC/6040 AC FS is the ideal solution for operations that do not require a great deal of mobility and value a low cost-per-ton model.
Stay Up and Running More Consistently
BENEFITS AND FEATURES
Keep Producing and Ensure the Safety of Your Operators, Even During Single Engine Loss You will realize enhanced safety, greater uptime, more productivity, and better serviceability as a result of our twin engine concept.
Enhanced Safety The ability to move your shovel to a safe area for repair, away from high walls, blast zones, or other safety hazards, is still possible with the use of a single engine.
Greater Uptime and More Productivity 65% of full production can still be achieved with the use of a single engine. This is due to the shovel’s continued ability to exert maximum digging forces, to lower the front attachment without requiring engine power (i.e., pressure-free), and to recuperate energy via its closed-loop swing circuit.
Better Serviceability Troubleshooting is greatly simplified and expedited with the ability to compare one engine versus the other.

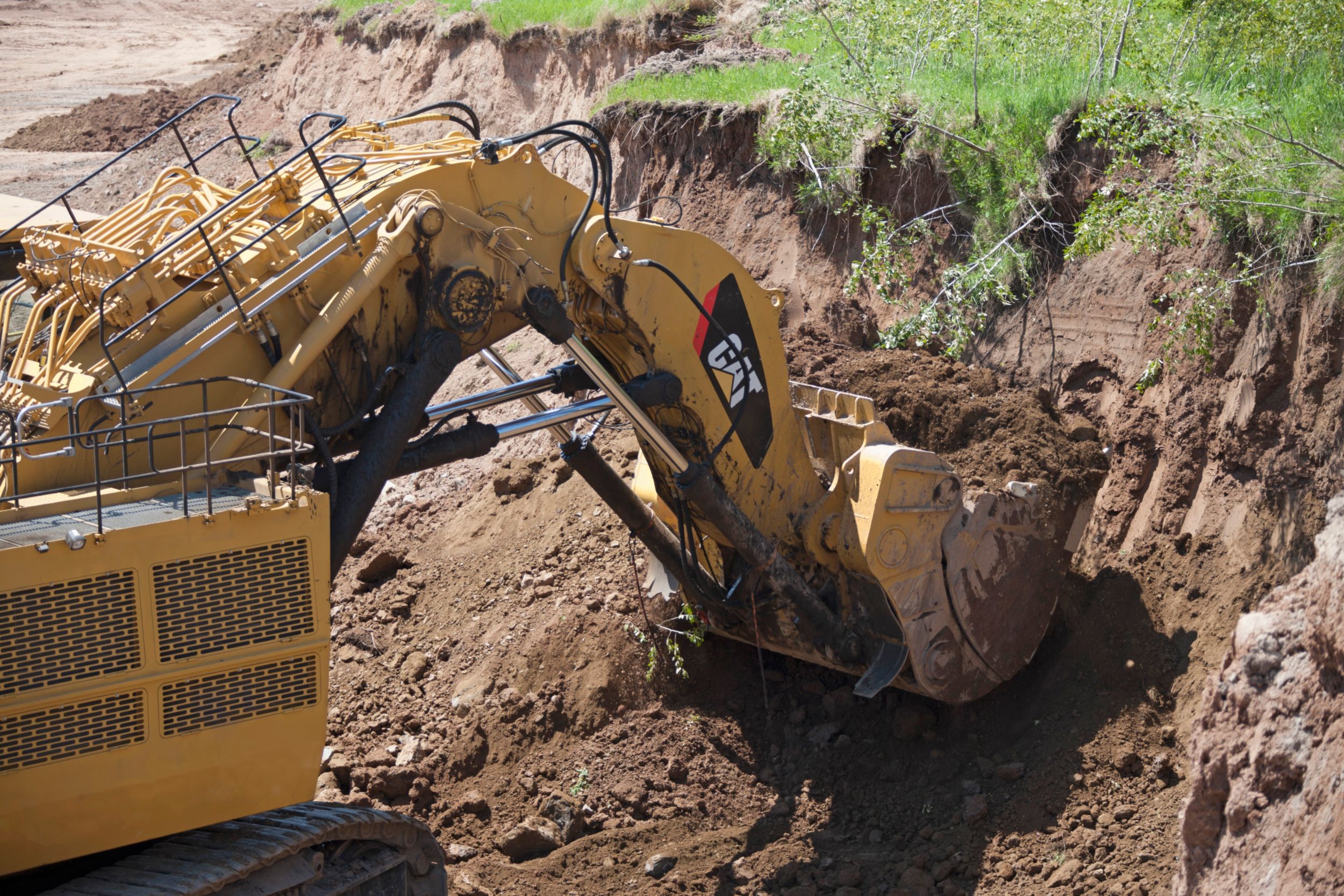

Superior Digging Capability and Bucket Fill Factors
BENEFITS AND FEATURES
Dig More Effectively with Our Unique TriPower Front Shovel Design You will experience safer, easier and faster front shovel operation with TriPower, a system proven on over a thousand Cat hydraulic mining shovels worldwide. Generating superior mechanical leverage and control, our FS configured hydraulic mining shovels utilize a unique boom design that employs rotatable triangular rockers. This design facilitates quicker cycle times, increased effective lifting force, constant boom momentum, automatic constant bucket angle, and automatic roll-back limiter.
Quicker Cycle Times - Faster lifting speeds are achieved, because the design enables the use of smaller-diameter boom cylinders.
Increased Effective Lifting Force - Design transfers digging forces into the superstructure, creating supporting boom momentum in addition to momentum that is generated hydraulically.
Constant Boom Momentum - Allows smaller boom cylinders for higher lifting speed. - Keeps lifting speed constant. - Enables the shovel to lift a single load along the entire digging distance. - No retracting of stick cylinders is required, ensuring that all hydraulic pumps are supplying the boom-up function.
Automatic Constant Bucket Angle - Material spillage is avoided during boom lifting, because the filled bucket automatically maintains a constant bucket angle. - On conventional kinematics the operator has to control manually the bucket position during lifting which cut in half the available oil flow for the boom cylinders.
Automatic Roll-back Limiter - Preventing material spillage back on to the operator’s cab and machine superstructure, our system ensures that the bucket is always in a safe position, without operator control/manipulation, when it is at maximum height. - The boom cylinder continues to receive maximum oil flow, because the operator does not need to activate the bucket cylinder.
Easy Serviceability and Greater Productivity
BENEFITS AND FEATURES
Straightforward, Safe System Maintenance Ensuring neat organization for safe operation, easy inspection, and fast service, and reducing the number of hoses needed, the main valve block is located on top of the boom.
Faster Cycle Times Faster cycle times are realized, because float valves are used to lower the boom instead of engaging pumps. This facilitates faster boom movements and allows other operating functions to occur simultaneously, such as bucket curl and stick in/out.
Greater Control Your operators will experience greater control with our five circuit hydraulics, allowing for two cylinder motions, two travel motions, and swing to be controlled simultaneously.

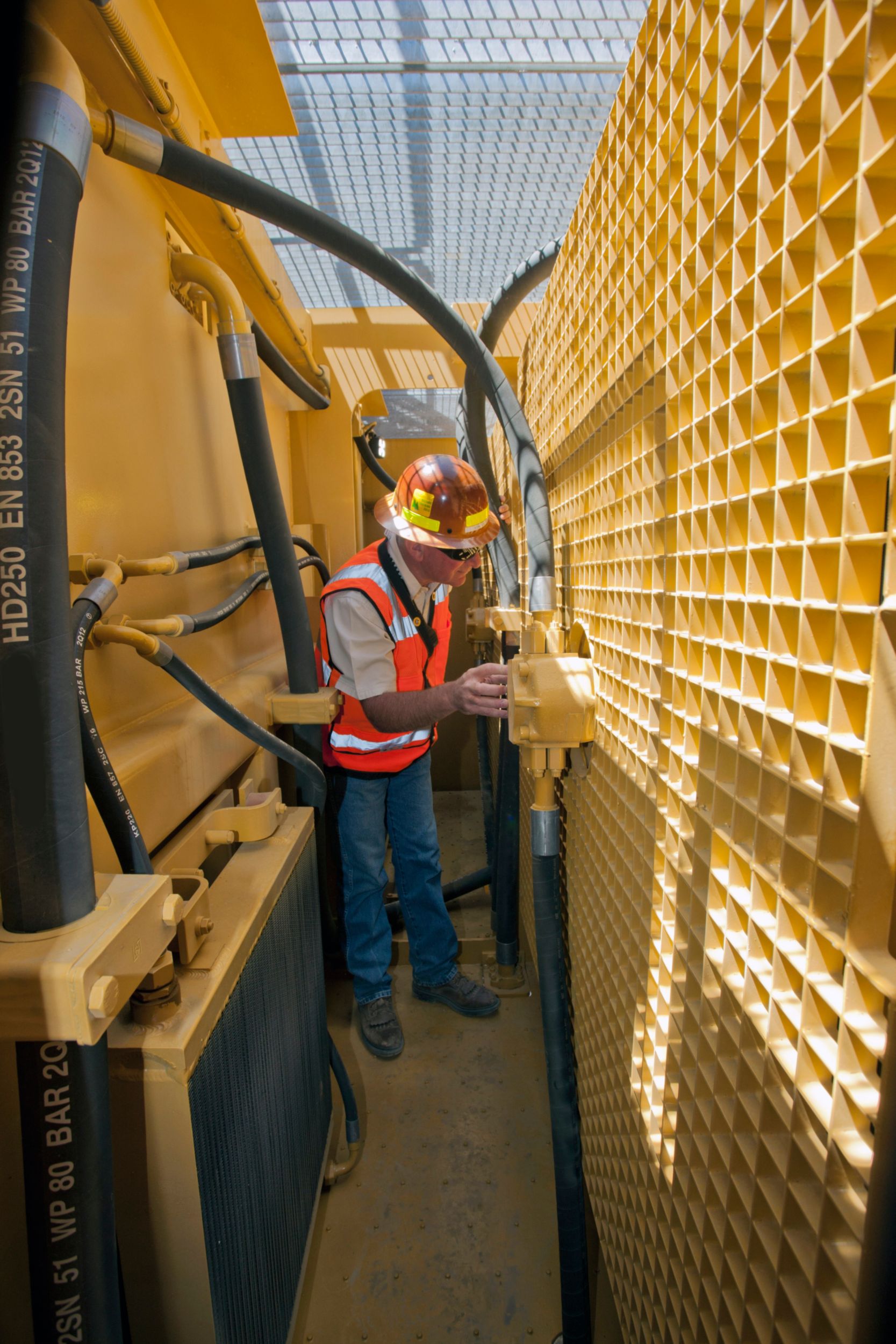

More Effective Oil Cooling for Extended Component Life
BENEFITS AND FEATURES
Protect and Extend the Life of Your Hydraulic Components and Seals Providing a more efficient means of cooling, particularly in demanding applications, our unique independent oil cooling system will extend the life of your hydraulic mining shovel’s components.
More Efficient Oil Cooling Our system is independent of return oil, achieving efficiency through the utilization of dedicated pumps that provide cooling capacity as needed, whether the engine is idling or under load. That means optimum oil temperature is being maintained, even while your operator waits for the next truck to load. Competitive hydraulic mining shovels only provide cooling when the machine is working and the engine is under load. Additional efficiency is achieved via our thermostatically controlled radiator fan speed. The fans do not run until oil temperature exceeds a temperature of 50° C (122° F), saving energy.
Optimal Oil Temperature Maintained The highly efficient oil cooling system ensures that the oil temperature is only 25° C to 30° C (45° F to 54° F) higher than the ambient temperature. Thus the hydraulic oil working temperature remains within the optimal operating viscosity range of 50° C to 70° C (122° F to 158° F).

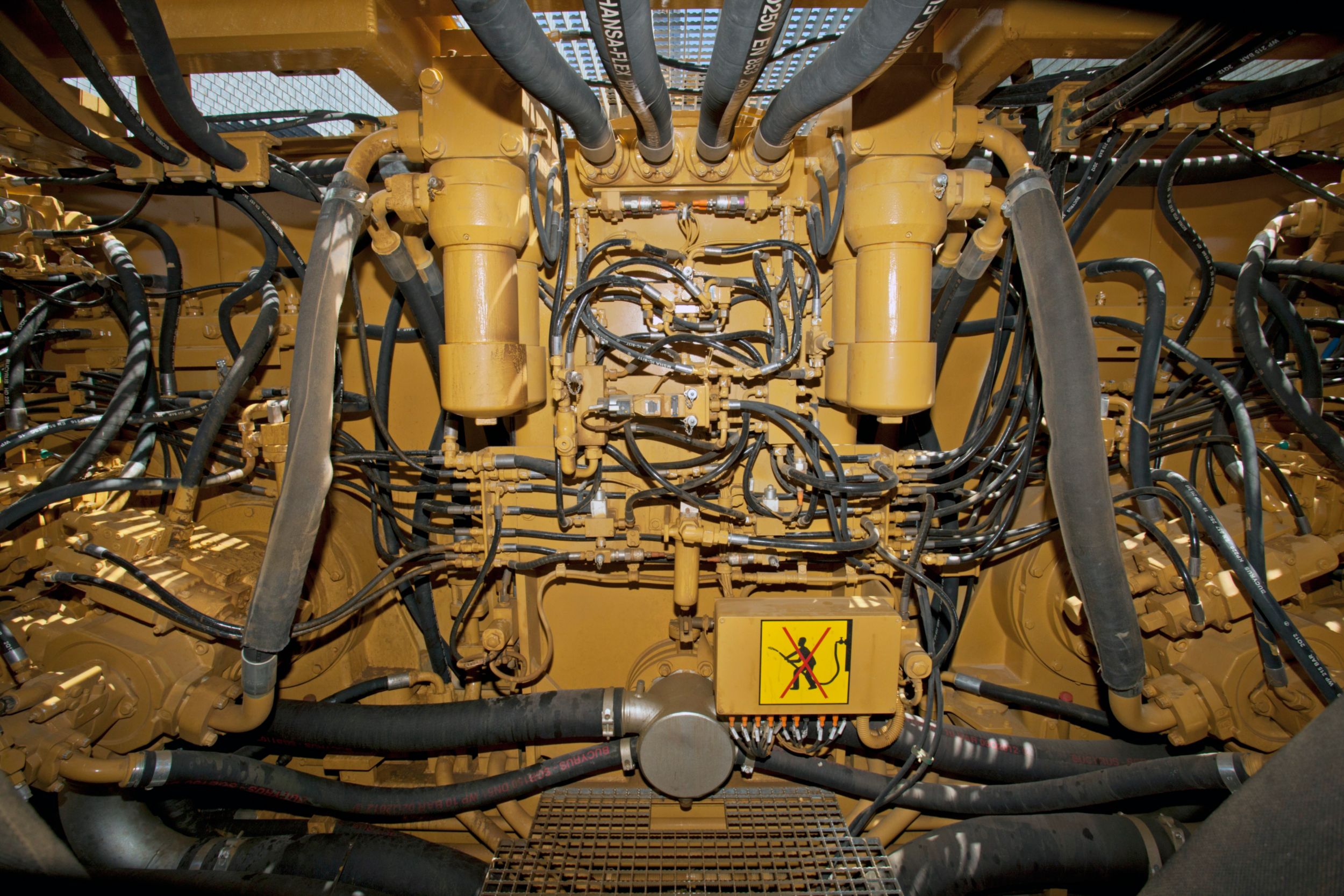

Enhanced Efficiency, Component Life, and Control Response
BENEFITS AND FEATURES
Experience Improved Machine Control and Component Life, while Reducing Fuel Consumption and Noise Emission, with Our Intelligent Pump Managing System Delivering optimal performance, our pump managing system continuously evaluates actual engine and hydraulic operating values against set values, and adjusts pump output accordingly. This results in efficient use of the engine for greater productivity. Pump managing system advantages include:
- Best possible utilization of engine output and engine overload avoidance via electronic load limit regulation
- Less energy consumption and less thermal load on hydraulic oil with zero oil flow regulation for main pumps
- Less fuel consumption and lower noise emission via automatic RPM reduction
- Reduced component wear and lower noise emission with automatic oil flow reduction for closing/opening of bucket clam
- Protection of components with automatic oil flow reduction if hydraulic and/or engine coolant temperature exceed set maximum
- Improved operator control response via on-demand pump flow
More Efficient Energy Use and Faster Boom Lift Motion During Swing
BENEFITS AND FEATURES
Load More Material, at Lower Cost, with the Energy Recovery Capability of our Closed-loop Swing System Delivering faster cycle times and improved energy efficiency, while also generating less heat, our closed-loop swing circuit provides distinct advantages over competitive machines utilizing open-circuit swing systems.
Greater Efficiency Via Energy Recovery Kinetic energy captured during the swing motion is fed back into the system during deceleration, providing more power to drive the main and auxiliary pumps. Energy is saved during deceleration, because braking occurs via counteracting controls, as opposed to throttles used in open circuit swing systems.
Energy Savings During Acceleration Energy is saved during acceleration via torque control, providing a pressure balance valve that controls the swing pump against pressure in the closed-loop swing circuit, ensuring that only the minimum necessary oil flow is utilized at any given time.
Faster Cycle Times Faster boom lift motion during swing is achieved with our closed-loop swing system, increasing overall productivity.

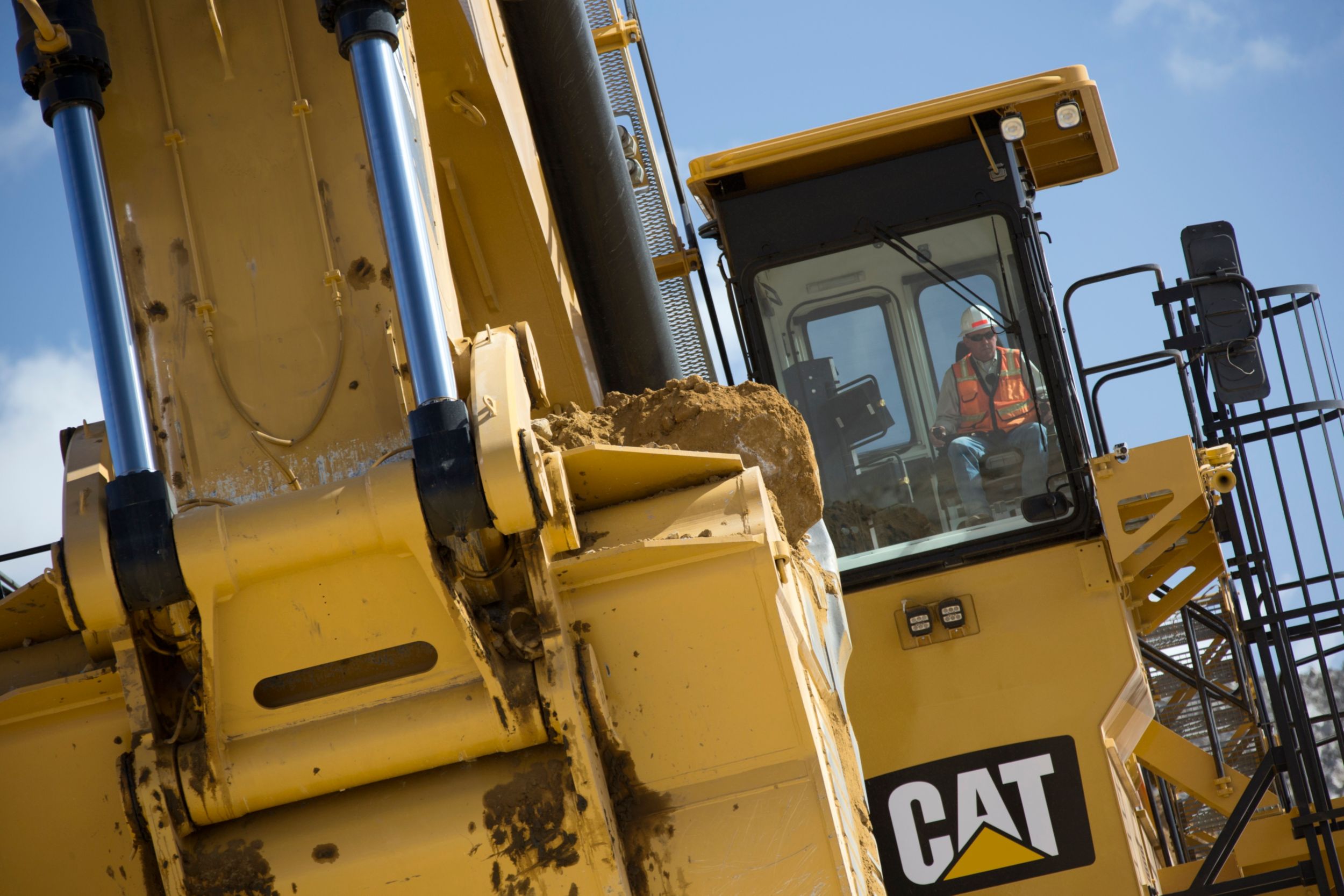

Ensuring the Safety and Comfort of Your Operators
BENEFITS AND FEATURES
Get Peak Operator Performance with Our Safe and Comfortable Operator’s Cab. We understand that the most important factor in your hydraulic shovel’s effectiveness is the performance of its operator. To help make their workday as productive as possible, we’ve incorporated safety and comfort features into the 6040/6040 FS operator’s cab.
Protection for Your Operator; Every Day, Every Shift
- Safety glass is used for all cab windows, and armored glass for the windshield.
- Operator’s seat is equipped with integrated safety switch that automatically neutralizes the hydraulic controls when the operator leaves the seat.
- Position of cab module, approximately 6.8 m (22 ft 4 in) high, provides excellent visibility of the digging and loading areas.
- Cab meets Falling Object Protection System (FOPS) and DIN ISO 3449 standards.
Supporting Peak Operator Performance with Comfort Features
- Pneumatically cushioned, multi-adjustable operator’s seat.
- Large, transflective color touch-screen display (BCS III) provides vital machine monitoring and diagnostic data for convenient troubleshooting and service assistance.
- Enhanced control response and servo adjustment capability via electro-hydraulic servo control.
Operate with Confidence
BENEFITS AND FEATURES
Enhanced Control Response and Optimized Hydraulic Engine Load Management Help your team meet productivity and performance standards with our intuitive, informative on-board electronics.
Electro-hydraulic Servo Control - Enhanced Control Response The system relays actuating signals from the joysticks, delivering fast and precise machine reactions that reduce operator fatigue.
Electro-hydraulic Servo Control - Increased Uptime Uptime is increased as a result of simplified troubleshooting and advanced diagnostic capabilities.
Electro-hydraulic Servo Control - Greater Operator Comfort Easier setting of servo control characteristics allow operators to adjust to their preference.
Electro-hydraulic Servo Control - Clean and Quiet Cab Environment No hydraulic lines are present in the cab or the cab module, ensuring a clean arrangement with less noise emission.
Control and Monitoring Platform (CAMP) - Reduced Control System Inventory Streamlined system requires only one type of controller for each function (i.e., left side drive train, right side drive train, servo, and auxiliary) reducing the number of required controllers in the system and associated replacement stock.
Control and Monitoring Platform (CAMP) - Less Fuel Consumption Engine works in optimal range of performance during the entire digging cycle, reducing fuel burn.
Control and Monitoring Platform (CAMP) - Increased Component Life Reduced hydraulic pulsation lessens stress imposed on the engine and hydraulic components.
Control and Monitoring Platform (CAMP) - Enhanced Operator Comfort Less vibration and more even machine movement via reduced pressure peaks.
Control and Monitoring Platform (CAMP) - On-screen Documentation The Parts book, Technical handbook, and Operating handbook, as well as hydraulic and electric schematics, are available in electronic format.
Evolving Your Mine for Greater Safety and Productivity
BENEFITS AND FEATURES
Helping You Enhance Safety and Productivity Through Technology Aimed at enhancing the productivity and profitability of your hydraulic mining shovel, we currently offer a combination of Cat MineStar System offerings and Cat hydraulic mining shovel technology solutions.
Cat MineStar System Helping you achieve your goals for enhanced mine site safety, improved efficiency, reduced operating costs, and greater profitability, the Cat MineStar System provides the most comprehensive suite of mining technology products in the industry. It consists of a number of configurable capability sets - Fleet, Terrain, Detect, Health, and Command - that allow you to scale the system to your mine site needs. Cat MineStar System helps you manage everything from material tracking to sophisticated real-time fleet management, machine health systems, autonomous equipment, and more. The Cat 6040/6040 FS is currently able to utilize three of the Cat MineStar System capability sets:
- Fleet Fleet provides real-time machine tracking, assignment and productivity management, providing a comprehensive overview of all your asset operations from anywhere in the world.
- Terrain Terrain enables high-precision management of drilling, dragline, grading and loading operations through the use of guidance technology. It increases machine productivity and provides you real-time feedback for improved efficiency.
- Detect
Hydraulic Mining Shovel Technology Solutions - Monitoring and Diagnostic System Enhancing diagnostic capabilities and providing detailed troubleshooting functions, our Board Control System uses sensors throughout the machine to monitor operating data, record faults, and notify the operator audibly and visually. This promotes the earliest possible detection of faults and allows for timely maintenance planning and assistance for speedy repair.
Move More Material with Optimal Pass Match Pairings
BENEFITS AND FEATURES
Achieve Targeted Loading/Hauling Production with Perfectly Paired Cat Hydraulic Mining Shovels and Mining Trucks For full truck payloads with minimum loading time, an efficient loading/hauling system begins with an optimized equipment match. Cat hydraulic mining shovels are matched with Cat mining trucks to maximize volume of material moved at the lowest operating cost per ton.
Bolstering Your Investment with Robust and Durable Structures
BENEFITS AND FEATURES
Rugged Front Attachment Options Designed and Fabricated to Withstand Your Extreme Mining Conditions To extend service life and ensure that your shovel keeps producing, our front shovel attachment structures are designed for durability and dependability. Extended performance in the harsh mining conditions you face daily is accomplished through selection of high-strength steels and rugged castings, joined and thermally stress-relieved, to help you achieve your productivity targets.
Front Attachment Structures Include:
- Heavy castings at all pivot points
- Better flow of forces and less welding seams, as top chords are made of one bend plate
- Entire boom and stick are stress relieved after welding
- Welding procedures allow for internal welding (double prep weld)
Longer Component Life for Better Swing System Reliability
BENEFITS AND FEATURES
More Reliable Swing Component Life Extending component life and ultimately improving machine uptime, our swing system includes a triple-race swing roller bearing with internal gearing connected to an automatic lubrication system. For added reliability, all lube lines are located inside the roller bearing for maximum protection.
Service Friendly Easier maintenance is afforded by the free accessibility of swing gears and rotary distributor.
Tough and Long-lasting
BENEFITS AND FEATURES
Less Wear and Tear on Crawler Components Extending track life and improving overall machine reliability, our undercarriages are engineered with extensive use of finite element analysis, steel structures are optimized, travel motors are well-protected by strong cover plates and hinged door covers, and a unique robust track chain incorporates a combined pad/link design. Further extending track life, a state-of-the-art track tensioning system with membrane accumulator automatically adapts the tensioning of the tracks, depending upon operating conditions.
Designed with Your Safety as Our Top Priority
BENEFITS AND FEATURES
Sharing your commitment to safety, and driven by our commitment to Zero Harm, we work tirelessly to design the safest machines possible to protect your most important asset; your employees. That is why we updated the design of the 6040/6040 FS in accordance with the principles of MDG 41 and 15, and offer this standard, not as an option or upgrade. Some examples of the safety-enhancing features of the Cat 6040/6040 FS hydraulic mining shovel include the following:
Machine Access

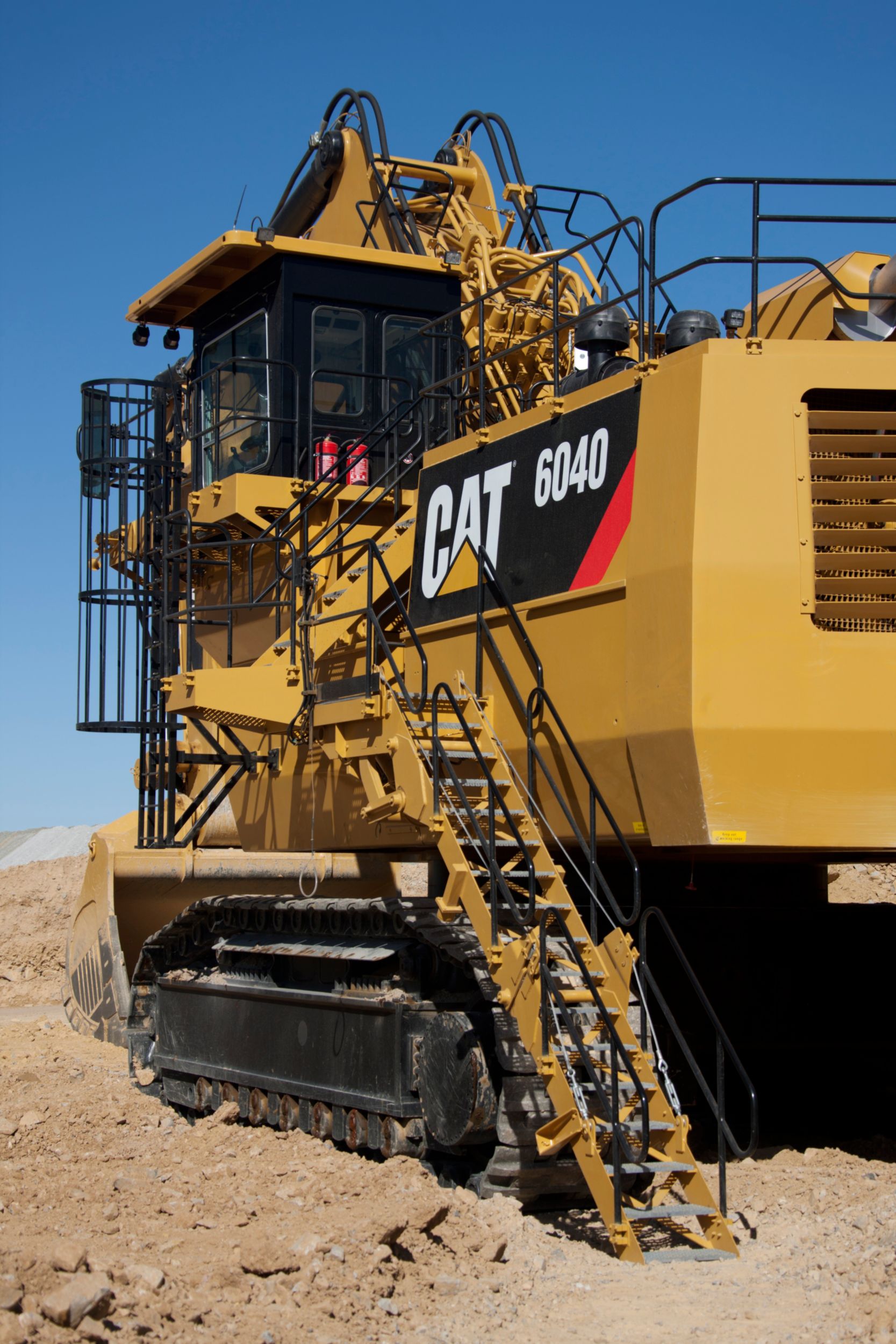

- All stairways have 45° angle for safe and comfortable access and movement about the machine.
- Slide down emergency egress ladder directly adjacent to the operator’s cab.
- Hydraulically operated boarding ladder with emergency lowering via nitrogen accumulator ensures that ladder remains operational even when engines shut off.
- Machine swing and propel capability is switched-off when ladder is in down position.
Service and Maintenance
- Improved routing and clamping of hydraulic hoses.
- Hydraulic hoses and electrical wiring are separated from each other for fire prevention.
- All service areas are accessible via anti-slip walkways, and trip hazards are eliminated.
- All hot surfaces are covered to prevent burns.
Electrical System
- Cabinet with battery isolation switch, mounted on top deck directly above the battery box, allows quick and easy shut-off of voltage on the entire shovel.
- Cabinet contains a starter isolator which allows on-board voltage, but prevents starting of engines.
Emergency Shut-offs
- An easily accessible, standard shut-off switch located in the cab shuts down the electrical system in case of emergencies.
- Additional shut-off switches are located on the machine, in the machine house or accessible from the ground with pull ropes.
Precise Bucket Control • Minimizing the potential for material spill onto the attachment or cab, the TriPower automatic roll-back limiter prevents the bucket from being curled back too far.
Designed to Get You Back to Work Fast
BENEFITS AND FEATURES
Lowering your operating costs and maximizing your hydraulic mining shovel’s uptime and productivity is of supreme importance to us. To that end, we’ve made vital components more accessible and designed simpler systems to make maintenance activities quicker and easier.

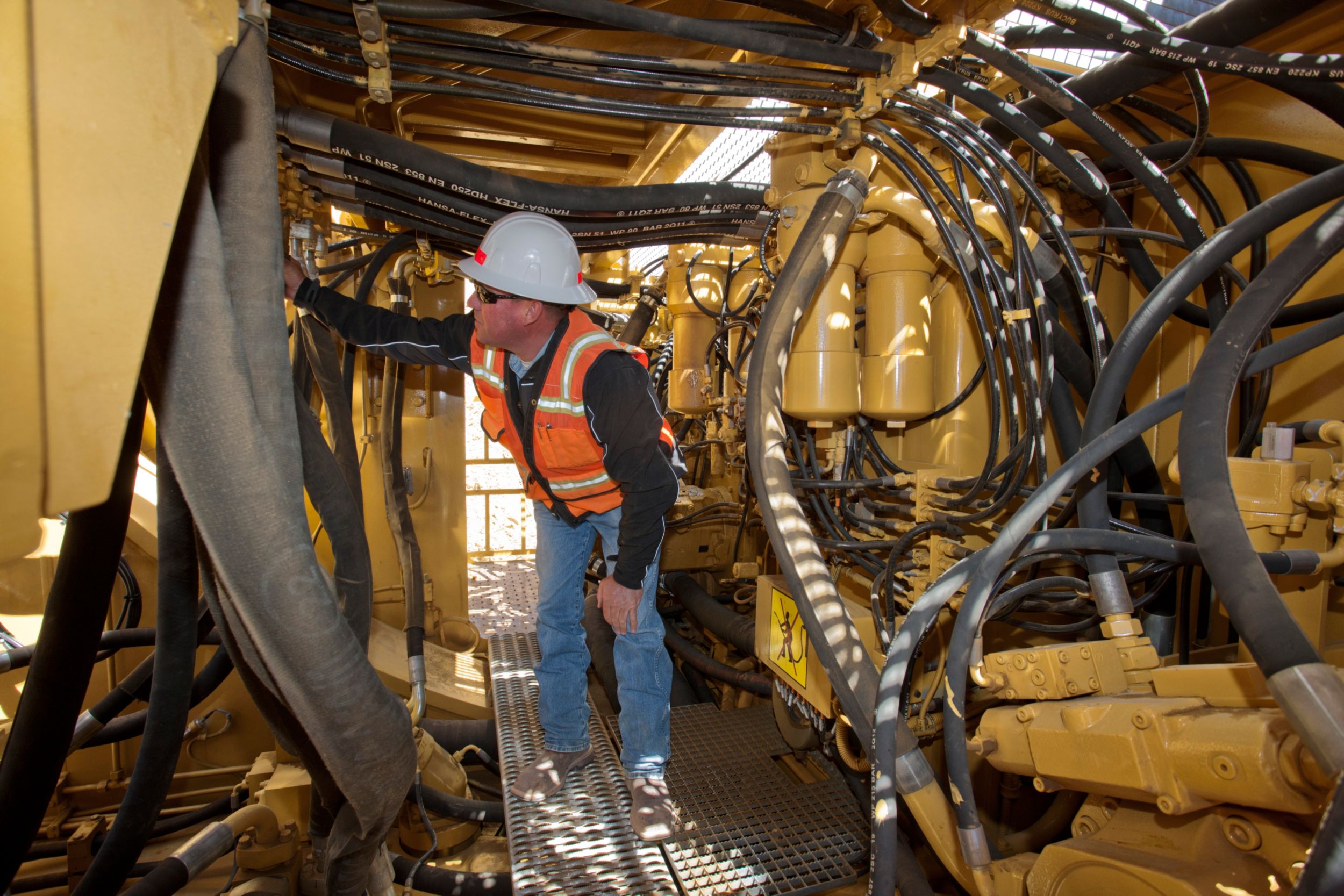

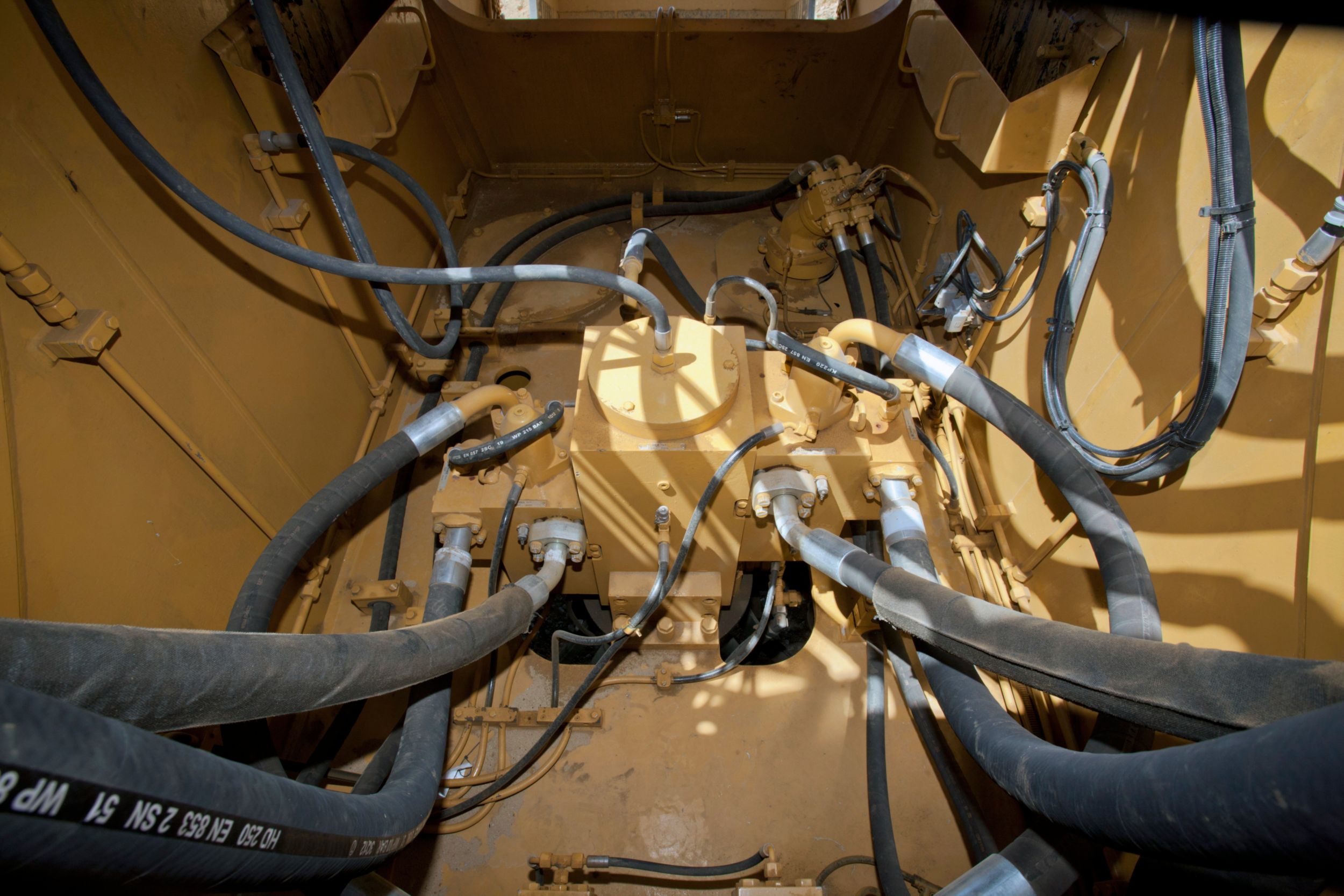

Open, Spacious Access to Components
- Facilitating easier maintenance, exceptional accessibility is provided to systems like the swing motor, swing gearbox and rotary distributor in the well organized superstructure. The engine is accessible from three sides.
- Easily accessed by walkways on both sides, the boom-mounted main valve block, a feature unique to Cat hydraulic mining shovels, provides a clean layout and reduces the number of hoses leading from the superstructure to the attachment.
Simple Hydraulic System with Main Valve Block Positioned on Boom
- Ensuring neat organization for safe operation, easy inspection and fast service, the design of our hydraulic system significantly reduces the total number of frequently moving hoses from the superstructure to the attachment.
- Longer hose life via improved routing in accordance with MDG design standards.

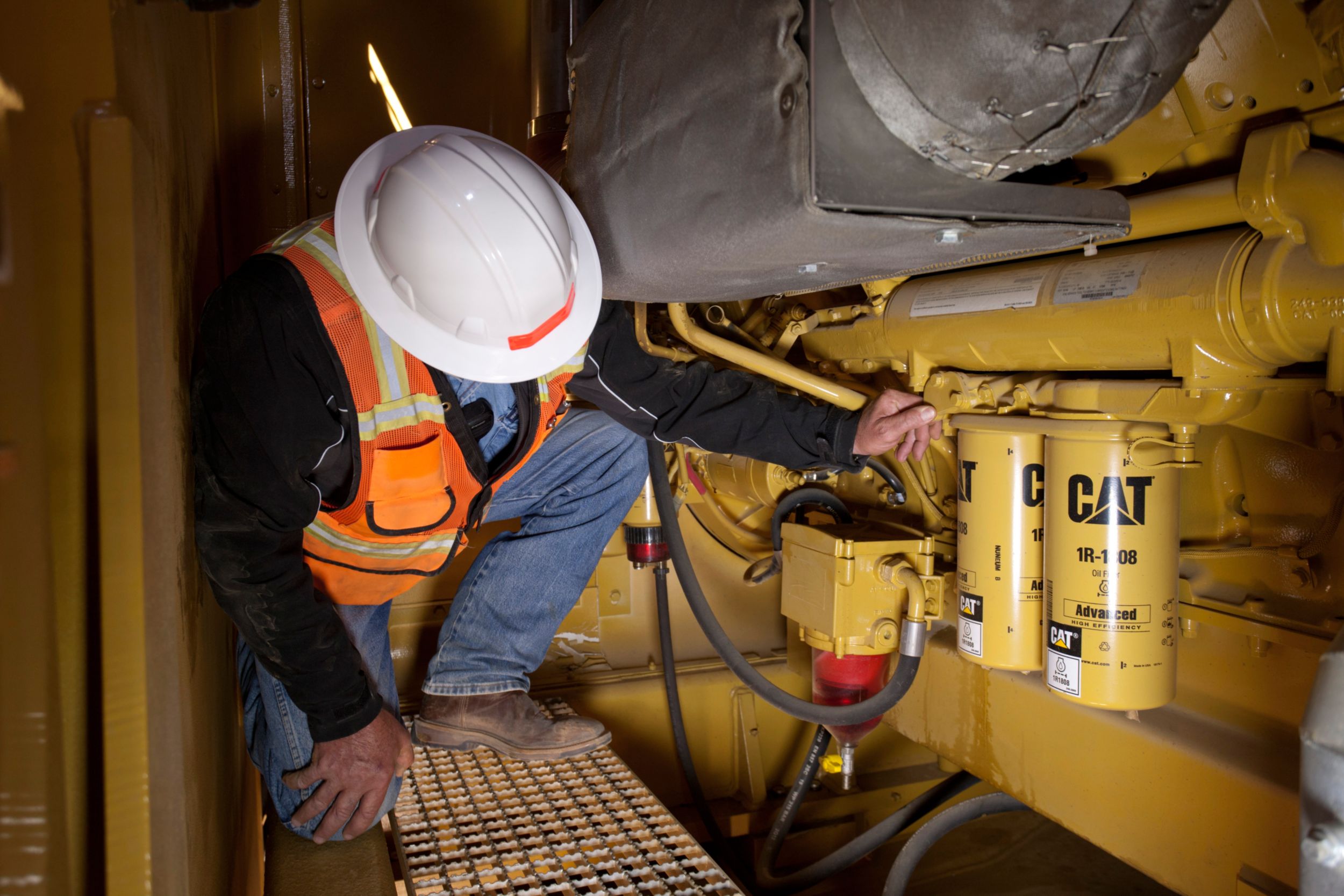

Easy Ground-level Fuel and Fluid Replenishment • Quick fuel and fluid replenishment is made easy with a retractable service station underneath the engine module, accessible at ground-level.
Improved Drive Train Troubleshooting • Twin-engine design facilitates troubleshooting of drive trains, as one engine can be compared to the other.
Stay Up and Running with Service and Support from Our Unmatched Global Network
BENEFITS AND FEATURES
Commitment Makes the Difference Cat dealers offer a wide range of solutions, services and products that help you lower costs, enhance productivity and manage your operation more efficiently. From the time you select a piece of Cat equipment until the day you trade or sell it, the support you get from your Cat dealer makes the difference.
Dealer Capability Cat dealers provide the level of support you need, on a global scale. Dealer expert technicians have the knowledge, experience, training and tooling necessary to handle your repair and maintenance needs, when and where you need them.
Product Support When Cat products reach the field, they are supported by a worldwide network of parts distribution facilities, dealer service centers and technical training facilities to keep your equipment up and running. Cat customers rely on prompt, dependable parts availability through our global dealer network, ready to meet your needs 24/7.
Service Support Every piece of Cat equipment is designed and built to provide maximum productivity and operating economy throughout its working life. Cat dealers offer a wide range of service plans that will maximize uptime and return on your investment, including:
- Preventive Maintenance Programs
- Diagnostic Programs, such as Scheduled Oil Sampling and Technical Analysis
- Rebuild and Reman Option
- Customer Support Agreements
Application Awareness Operating and maintenance costs are influenced by many application and site-specific factors, such as: material density and fragmentation, payload, bench height, truck positioning, ground conditions, amount of traveling and maintenance. Your Cat dealer can provide you with an understanding of the effects application characteristics and operating techniques have on maintenance and operating costs.
Operation Your Cat dealer can arrange training programs to help operators improve productivity, decrease downtime, reduce operating costs and enhance safety.
Higher Standards for a Better Tomorrow
BENEFITS AND FEATURES
Meeting the needs of today without compromising the needs of tomorrow is the goal for all Cat machinery. The commitment to helping you operate safely and sustainably is affirmed in the production of the 6040/6040 FS hydraulic mining shovel.
Cat Hydraulic Mining Shovel Sustainability:
- Electric Power Option - Produces less emissions, heat, and sound, and avoids disposal/replenishment of engine oil and oil filters.
- Energy Recovery - Emit less heat and improve energy efficiency via the energy recovery capability of the closed-loop swing circuit.
- Rebuilds - Decrease your energy use and material consumption with a machine that’s designed to be rebuilt.
