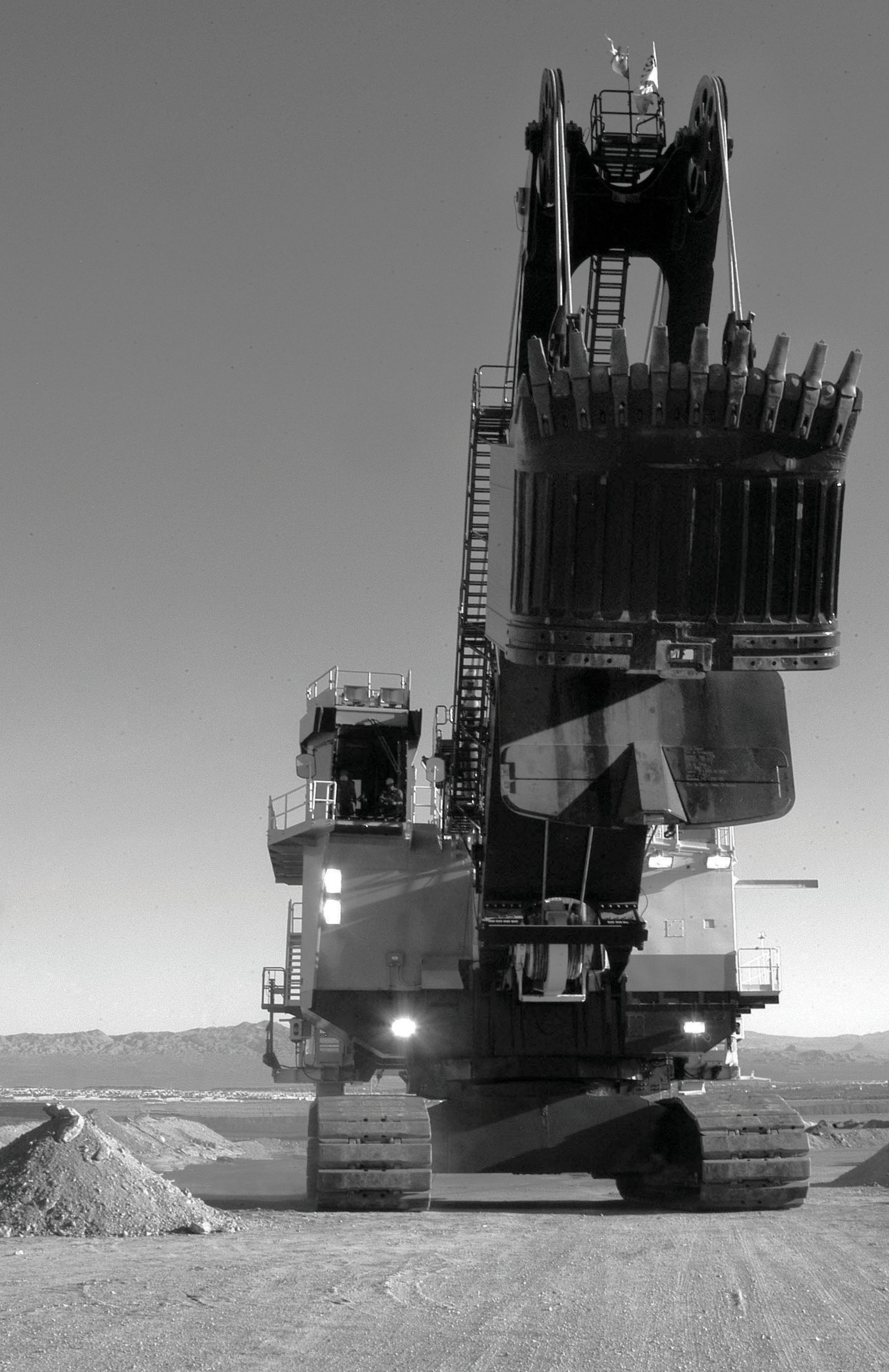

7295 ELECTRIC ROPE SHOVEL
Cat® Electric Rope Shovels are built specifically for removing large amounts of overburden and ore, at a fraction of the cost per ton.
SPECIFICATIONS
Dipper payload45.4 tonnes
Dipper capacity18.4-39.0 m3 (24-51 yd3)
Effective length of dipper handle9.45 m
BENEFITS AND FEATURES
support
Caterpillar factory-trained service engineers are available throughout the world to ...
LEARN MOREac igbt electrics
With over 30 years of AC experience and over 200 operating AC machines, Bucyrus led the ...
LEARN MOREaccessdirect™
AccessDirect is an electrical interface system that facilitates remote access to a ...
LEARN MOREdimensions
Dipper payload45.4 tonnes
Dipper capacity18.4-39.0 m3 (24-51 yd3)
Effective length of dipper handle9.45 m
Length of boom18.0 m
Overall length of dipper handle12.65 m
weights
Working weight, with dipper and standard links789251.0 kg
Ballast (furnished by customer)159665.0 kg
General purpose dipper - 25.2 m3 (33 yd3)49895.0 kg
Net weight, domestic, without ballast or dipper579691.0 kg
NoteThese weights will vary slightly depending upon dipper and optional equipment selection.
front end
Boom - Boomwelded, impact-resistant steel
Boom - Boom point sheave diameters2.08 m
Boom - Boom point sheavestwin-grooved, flame-hardened
Boom - Handle diameter86.36 cm
Boom - Wall thickness (nominal)4.45 cm
Rope Data - Boom susp. - Constructionstruct. strand
Rope Data - Boom susp. - Diameter69.9 mm
Rope Data - Boom susp. - No.4
Rope Data - Boom susp. - Typeequalized
Rope Data - Crowd - Construction8 x 37
Rope Data - Crowd - Diameter60.3 mm
Rope Data - Crowd - No.1
Rope Data - Crowd - Typesingle dual
Rope Data - Dipper trip - Construction7 x 25
Rope Data - Dipper trip - Diameter16.0 mm
Rope Data - Dipper trip - No.1
Rope Data - Dipper trip - Typesingle
Rope Data - Hoist - Construction6 x 41
Rope Data - Hoist - Diameter57.2 mm
Rope Data - Hoist - No.2
Rope Data - Hoist - Typetwin dual
Rope Data - Retract - Construction8 x 37
Rope Data - Retract - Diameter60.3 mm
Rope Data - Retract - No.1
Rope Data - Retract - Typesingle dual
electrical
Distribution System Requirements - Machine on large system1320 kVA
Distribution System Requirements - Machine on separate system2000 kVA
DriveIGBT Acutrol drive system.
Main Electrical Systems - Lighting transformer1 x 25 kVA, 120/240V secondary
Main Electrical Systems - System voltage (nominal)50/60 Hz, 7,200V
Main Electrical Systems - Trail cable (furnished by customer)SHD-3-#4 at 8,000V
Main Electrical Systems - Transformer, auxiliary250 kVA, 7,200V primary; 480V secondary
Power Requirements - Average 15-minute demand538-753 kW
Power Requirements - Peak power2152 kW
Power Requirements - Voltage3 phase, 50/60 Hz, 7,200V (Other voltages available to suit customer requirements.)
main structures
Crawler Mounting - Number and diameter of rollers: Lower (16)71.0 cm
Crawler Mounting - Number and diameter of rollers: Lower rear (2)89.0 cm
Crawler Mounting - Number and diameter of rollers: UpperSlides
Crawler Mounting - Number and pitch of treads (96)45.0 cm
Crawler Mounting - Overall length of mounting10.26 m
Crawler Mounting - Overall width 139.7 cm (55 in) treads, standard8.2 m
Crawler Mounting - Overall width 182.88 cm (72 in) treads8.63 m
Crawler Mounting - Take-up tumblers diameter120.7 cm
Crawler Mounting - Total effective bearing area (139.7 cm/55 in treads)20.81 m2 (224 ft2); 371.6 kPa (53.9 psi)
Crawler Mounting - Total effective bearing area (182.88 cm/72 in treads)27.2 m2 (293 ft2); 284.1 kPa (41.2 psi)
HoistHoist machinery consists of a motor coupled to two gear reductions, which drive the 137 cm (54 in) hoist drum.
Planetary PropelDual-motor independent drive.
Revolving Frame - Welded, impact-resistant steel: Length6.92 m
Revolving Frame - Welded, impact-resistant steel: Width3.2 m
SwingTwo parallel shaft units mounted to either side of the revolving frame. Each unit is driven by a vertically mounted motor.
Turntable - Cast alloy steel swing rack pitch diameter4.37 m
Turntable - Number of tapered rollers54
Turntable - Tapered rollers diameter18.73 cm
Turntable - Tapered, forged alloy steel roller rails diameter3.92 m
Turntable - Teeth external cut (face)20.32 cm
optimal working ranges
Clearance height (boom point sheaves)18.15 m
Clearance radius (boom point sheaves)17.48 m
Clearance radius (revolving frame)7.98 m
Clearance under frame (to ground)3.07 m
Clearance under lowest point in truck frame/propel gearcase0.78 m
Cutting height (maximum)15.56 m
Cutting radius (maximum)21.78 m
Dumping height9.22 m
Dumping height at maximum electric crowd limit7.0 m
Dumping radius (maximum)18.69 m
Height of A-frame11.94 m
Operator’s eye level8.2 m
Overall width12.39 m
Radius of level floor15.58 m
lights
TypesIncandescent lights on ground lights, walkways and operator’s cab.
TypesHPS lights on boom feet, top of A-frame, machinery house, lube room, control room, utility room and flood lights.
crowd
ComponentsRope Crowd with crowd machinery located at front center of the revolving frame; consisting of a motor, brake, drum and gearing.
ComponentsPlastic-coated crowd and retract ropes are used to move the dipper handle fore and aft.
lube system
Components4 pumps (2 for lubricant and 2 for grease) located in an insulated, double-walled lube room.
TypeSingle-line system applies lubricant and grease via the PLC.
BENEFITS AND FEATURES
SUPPORT
Caterpillar factory-trained service engineers are available throughout the world to ...

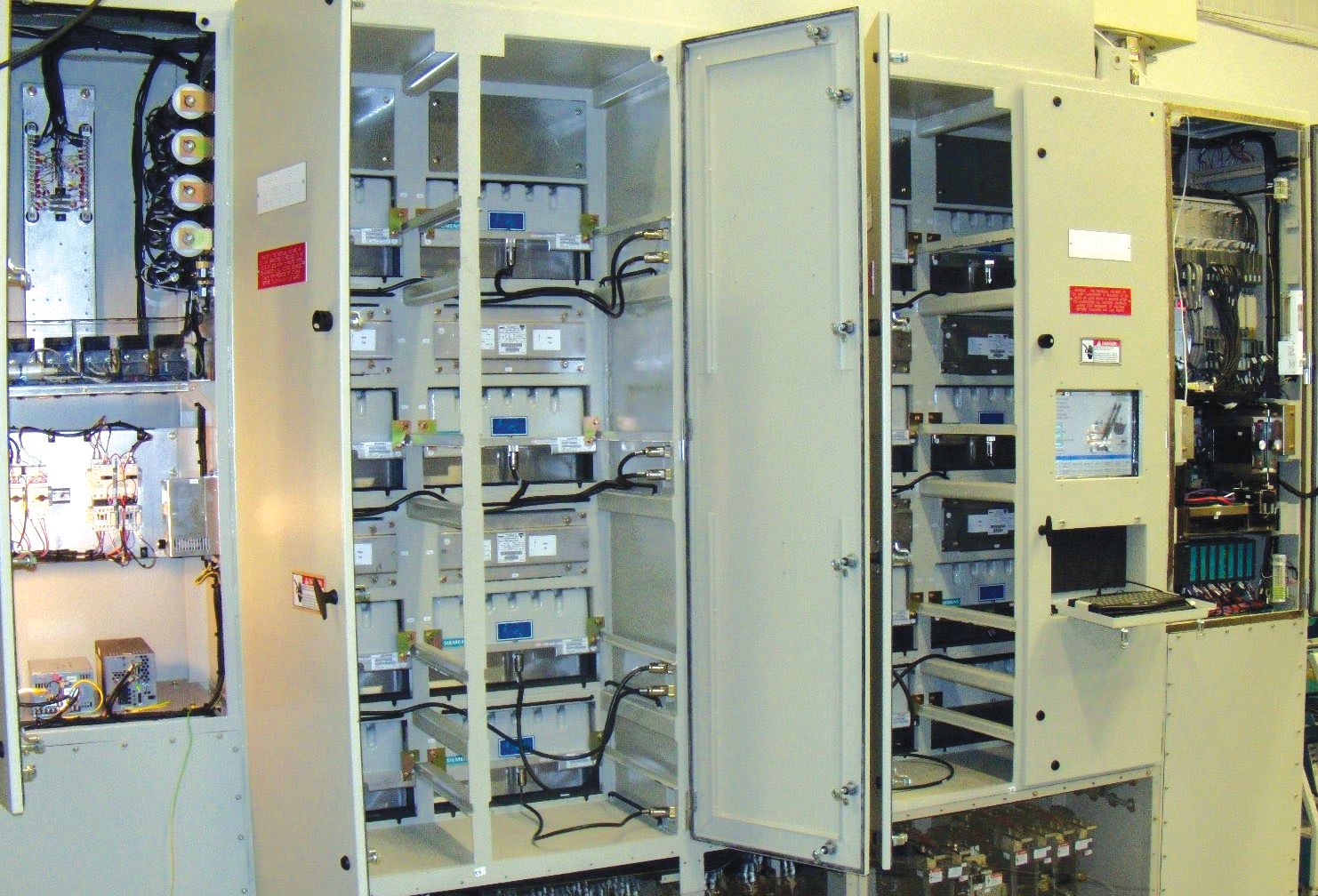

LEARN MOREAC IGBT ELECTRICS
With over 30 years of AC experience and over 200 operating AC machines, Bucyrus led the ...
LEARN MOREACCESSDIRECT™
AccessDirect is an electrical interface system that facilitates remote access to a ...
LEARN MOREMIDAS™

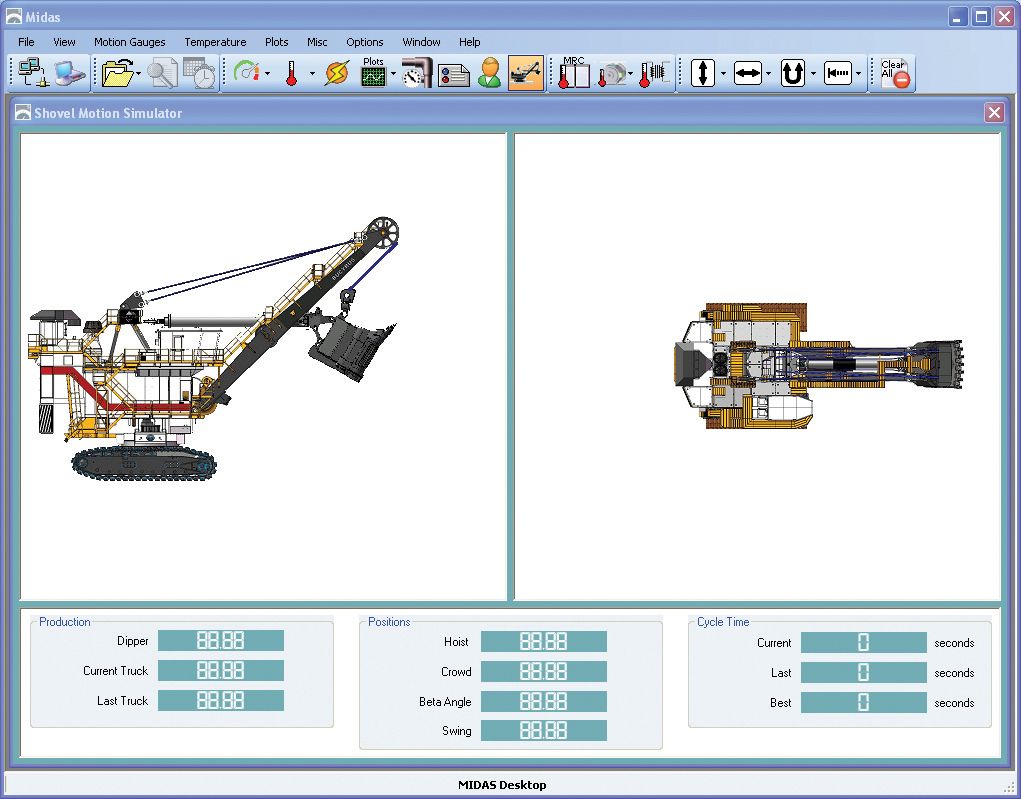

Celebrating its tenth anniversary on the market, the MIDAS health monitoring system ...
LEARN MOREACCULOAD™
AccuLoad is a data analysis system that provides real-time feedback on dipper loads with ...

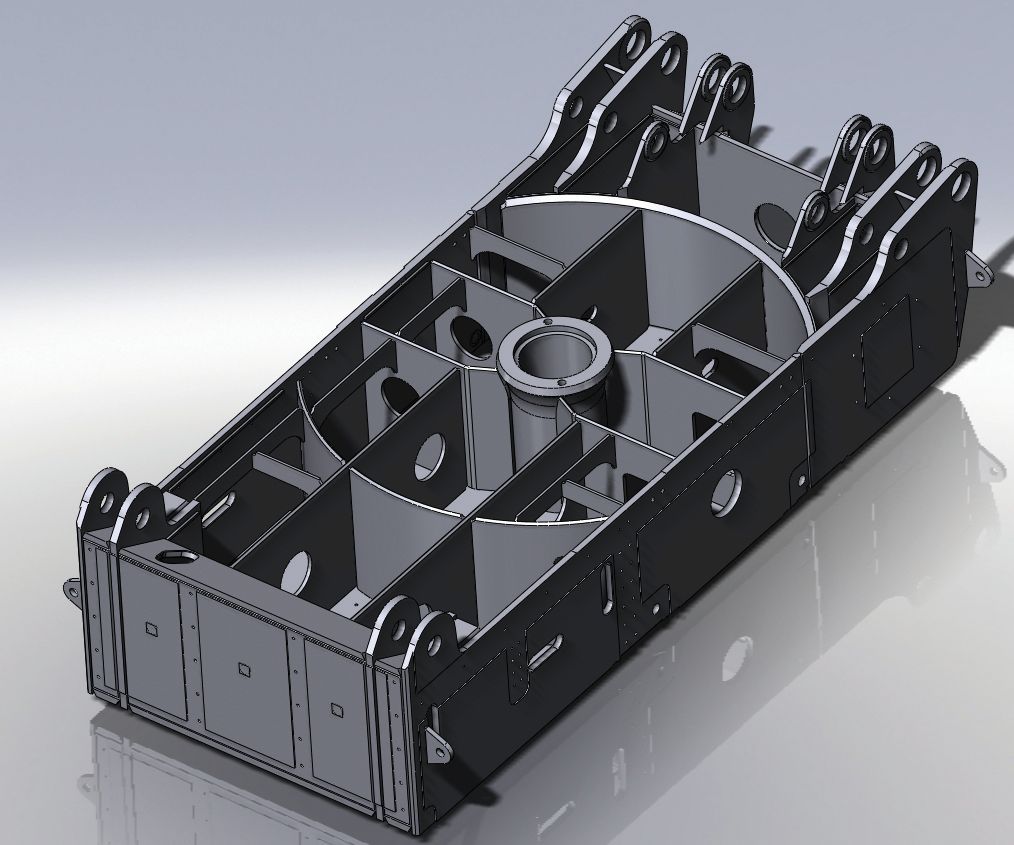

LEARN MOREMAJOR STRUCTURES
Cat major structures are designed for extended performance in harsh mining conditions. ...
LEARN MOREROBUST FRONT END DESIGN
The Cat free-floating tubular handle design presents many benefits over traditional ...

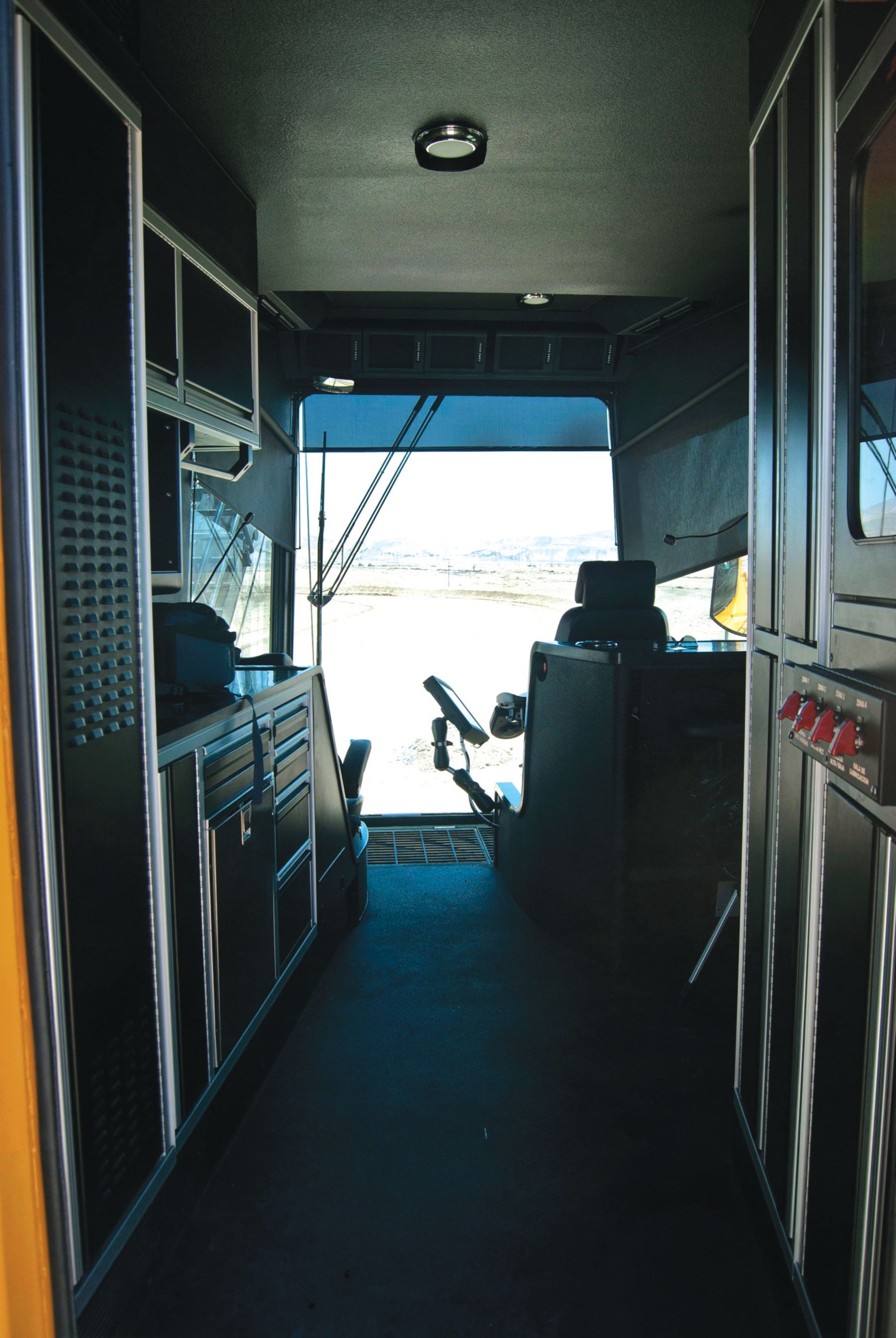

LEARN MORECAT® CAB
Caterpillar’s new state-of-the-art operator’s cab is the product of a multi-year ...

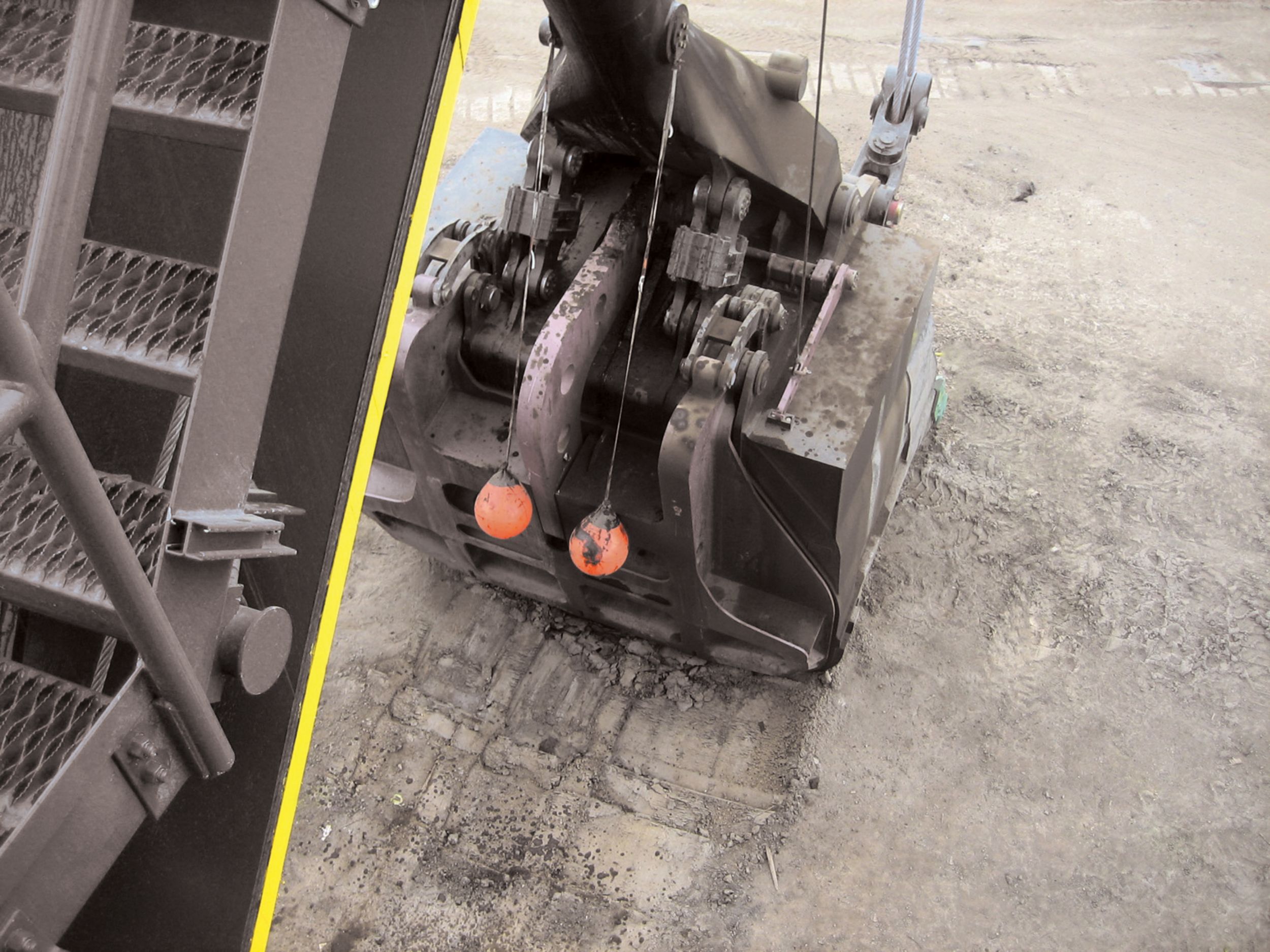

LEARN MORELATCHFREE™ DIPPER SYSTEM
The LatchFree Dipper System is Caterpillar’s solution to customers’ number-one cause ...

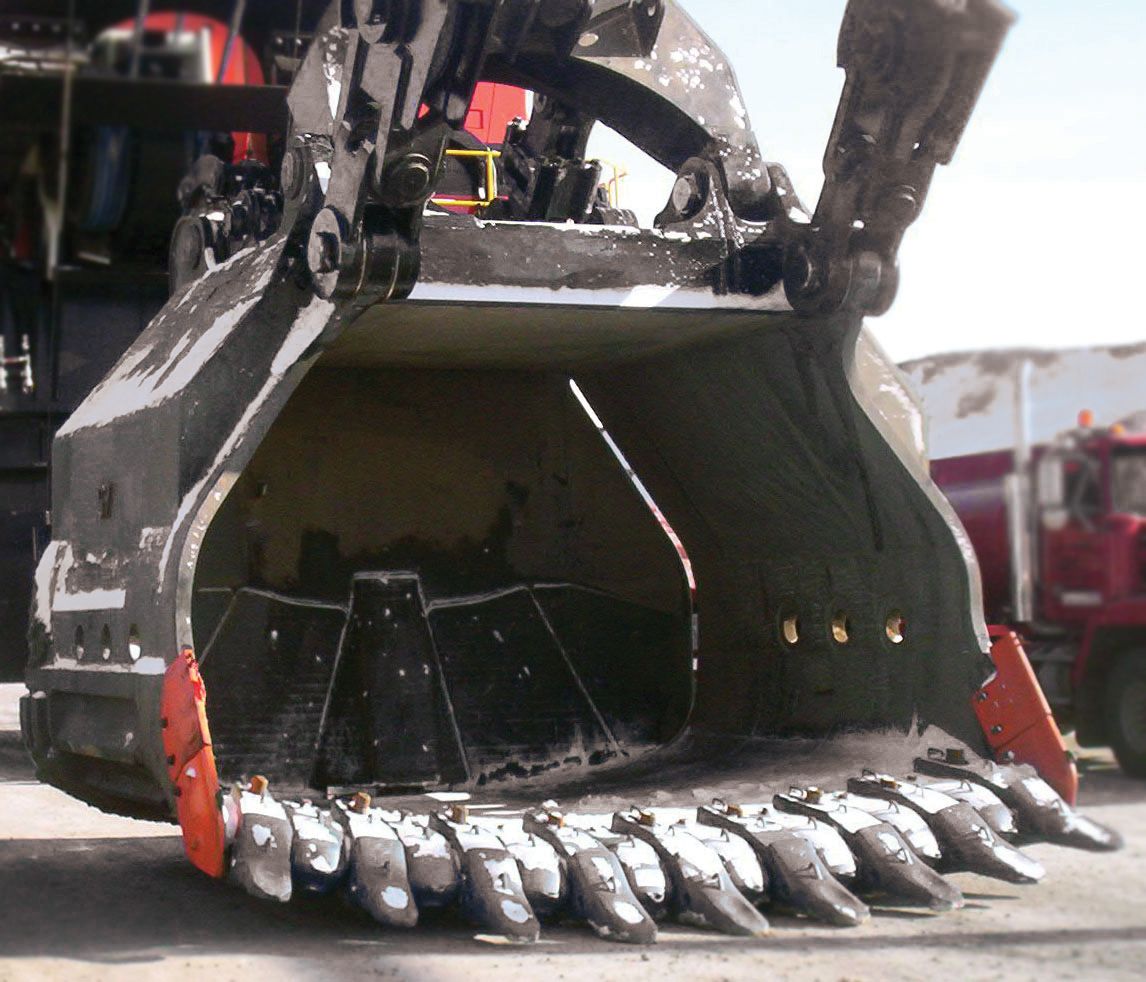

LEARN MOREFASTFIL™ DIPPER DESIGN
